Products
Designed for architectural stile and rail wood panel doors, offering seamless construction without compromising on detail.
Certified Fire Door and Frame Cores

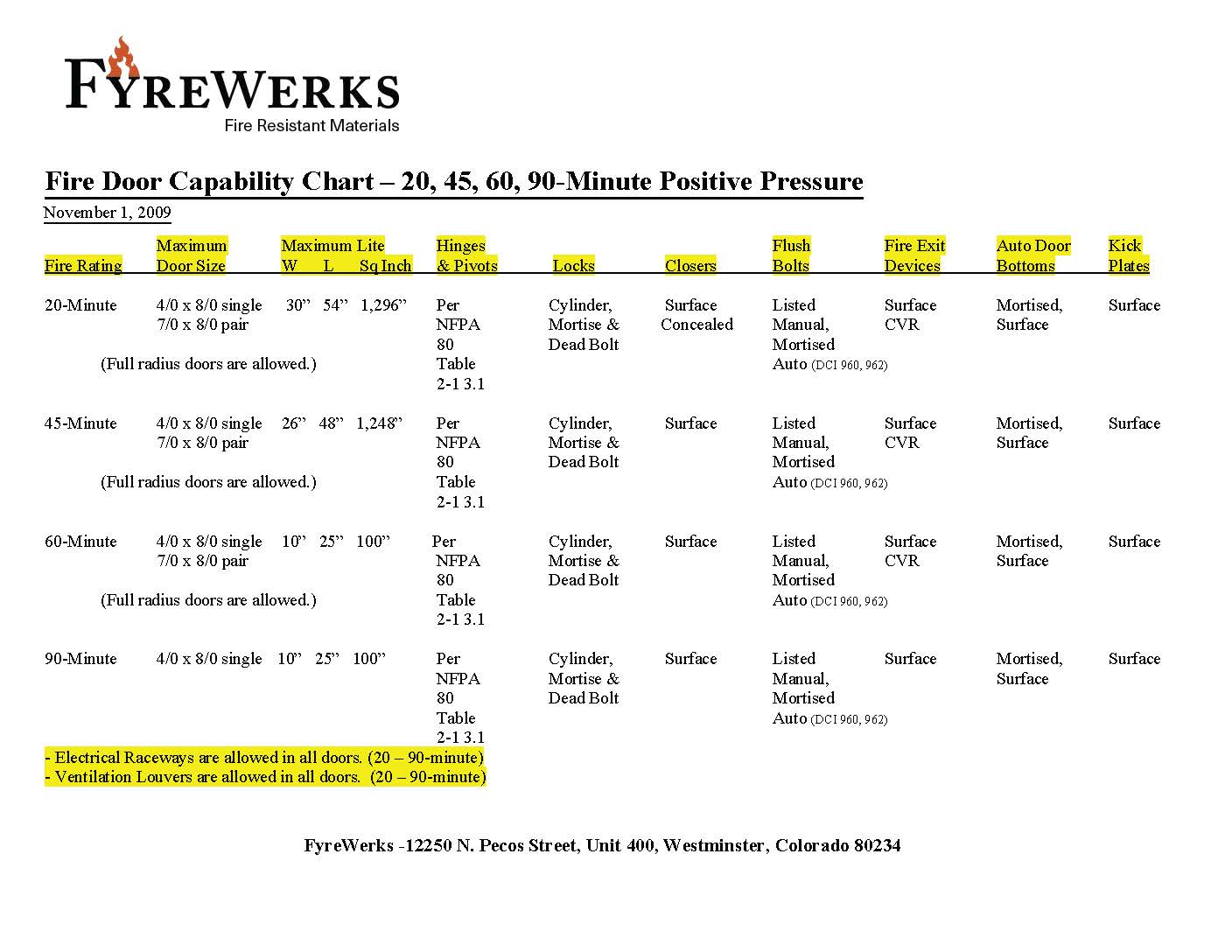

No testing required—ready for the fire door market with Warnock Hersey ratings of 20, 45, 60, and 90 minutes for both MDF and wood doors.
FW-20: 20-Minute Fire Door Core
You can build, label and sell 20 minute fire doors, including a 20-minute with 1296" of glass, that match your non-rated doors for all projects.
Using FyreWerks cores you can build full radius 20 minute doors.
With FyreWerks FW-20-minute core you can use MDF or hardwood with a density of 18# per cubic foot or greater to make virtually any panel configuration. The drawings in this section highlight a small sample of what you can do using the FyreWerks core in your suited doors.
Size
0.28" x 44" x 85" and 0.28" x 44" x 97"
Composition
Proprietary core laminated between high density fiberboard skins allows for easy glue up with standard approved wood glues.
Machining

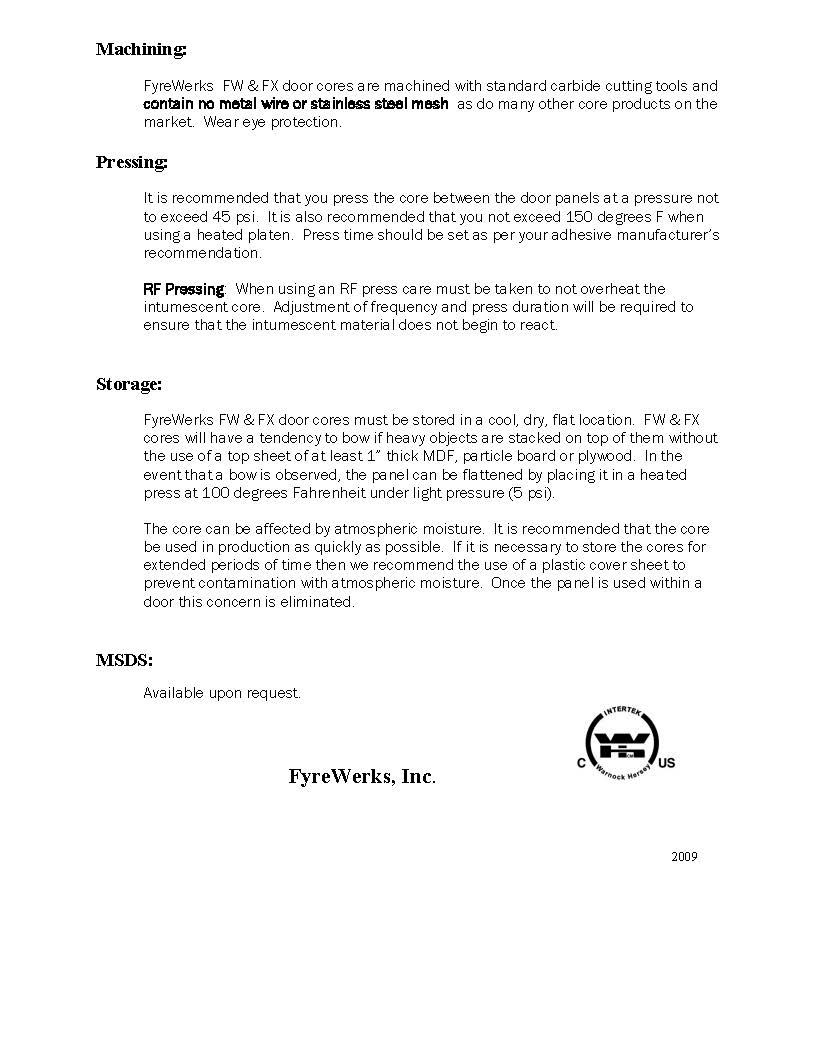

Machines easily with standard cutting equipment. Wear eye protection.
Storage
Store in a cool, flat and dry location.
Handling
Wear gloves when handling. Edges can be sharp.

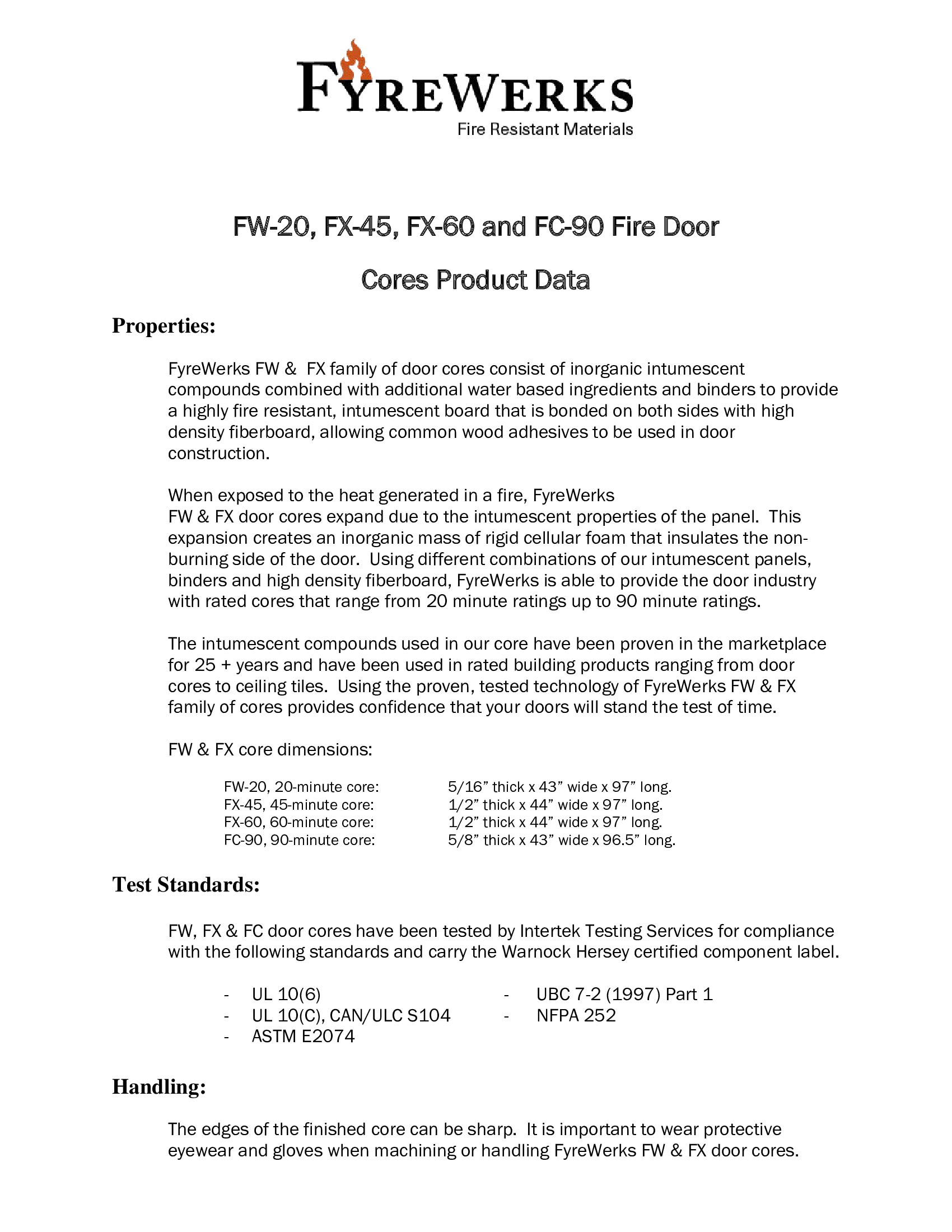

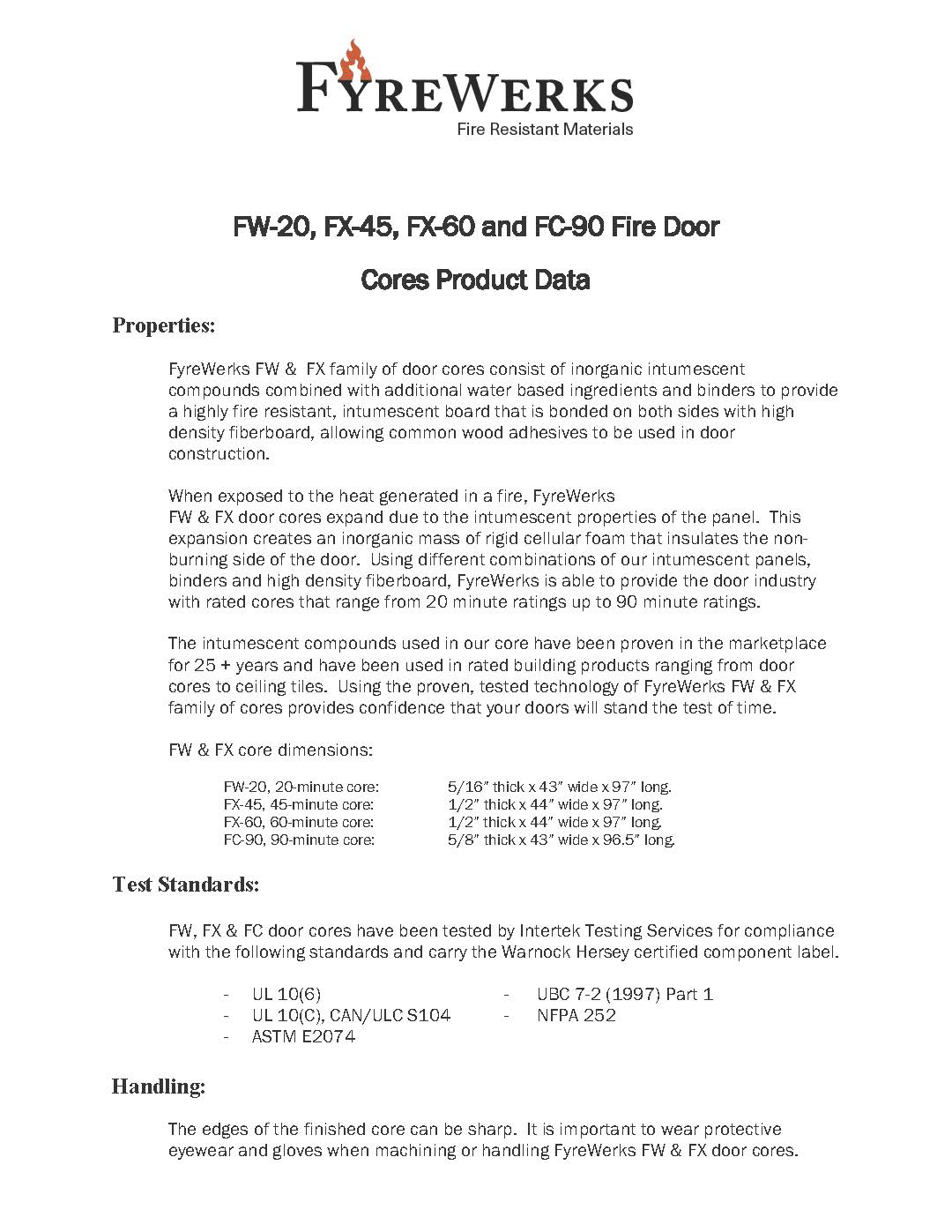

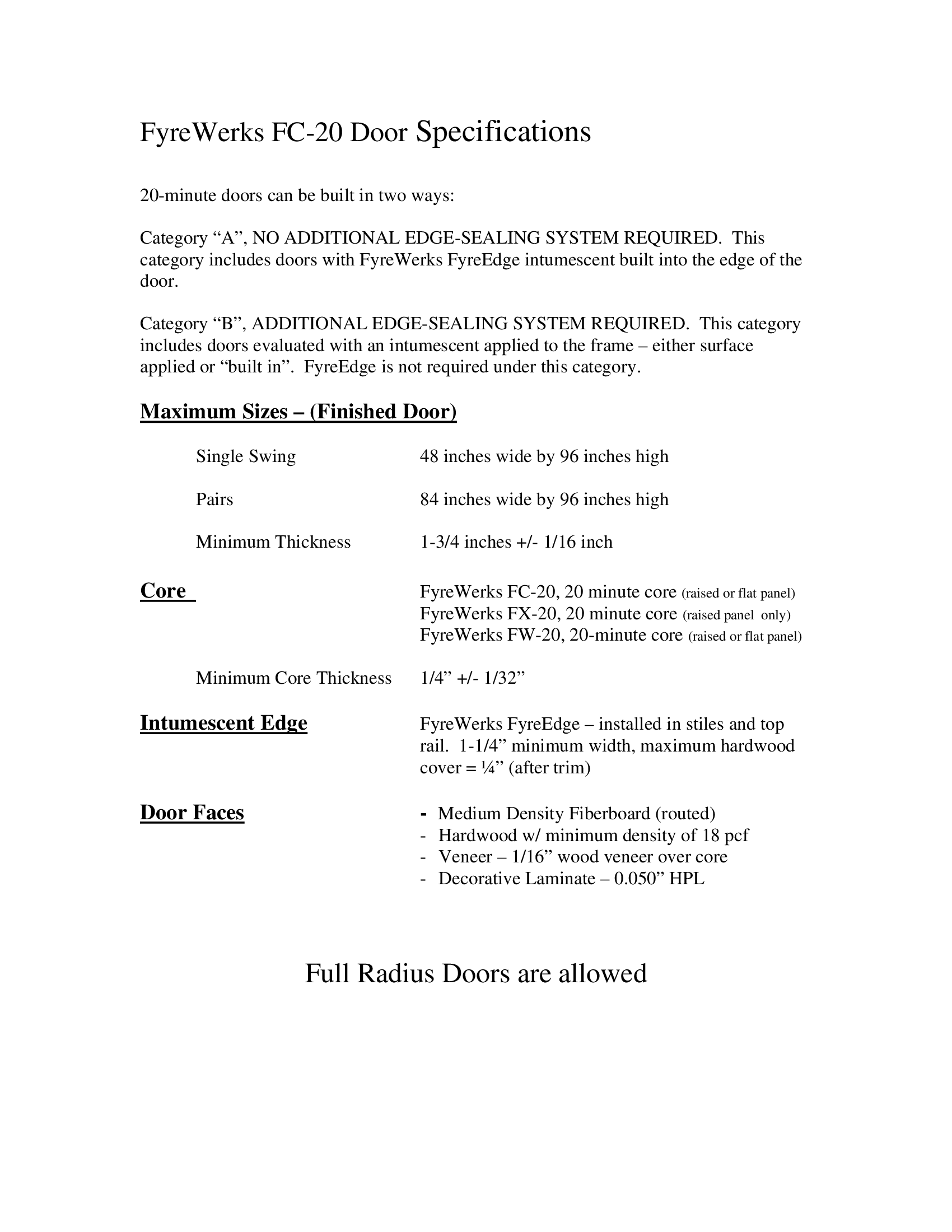

Specifications
Drawings

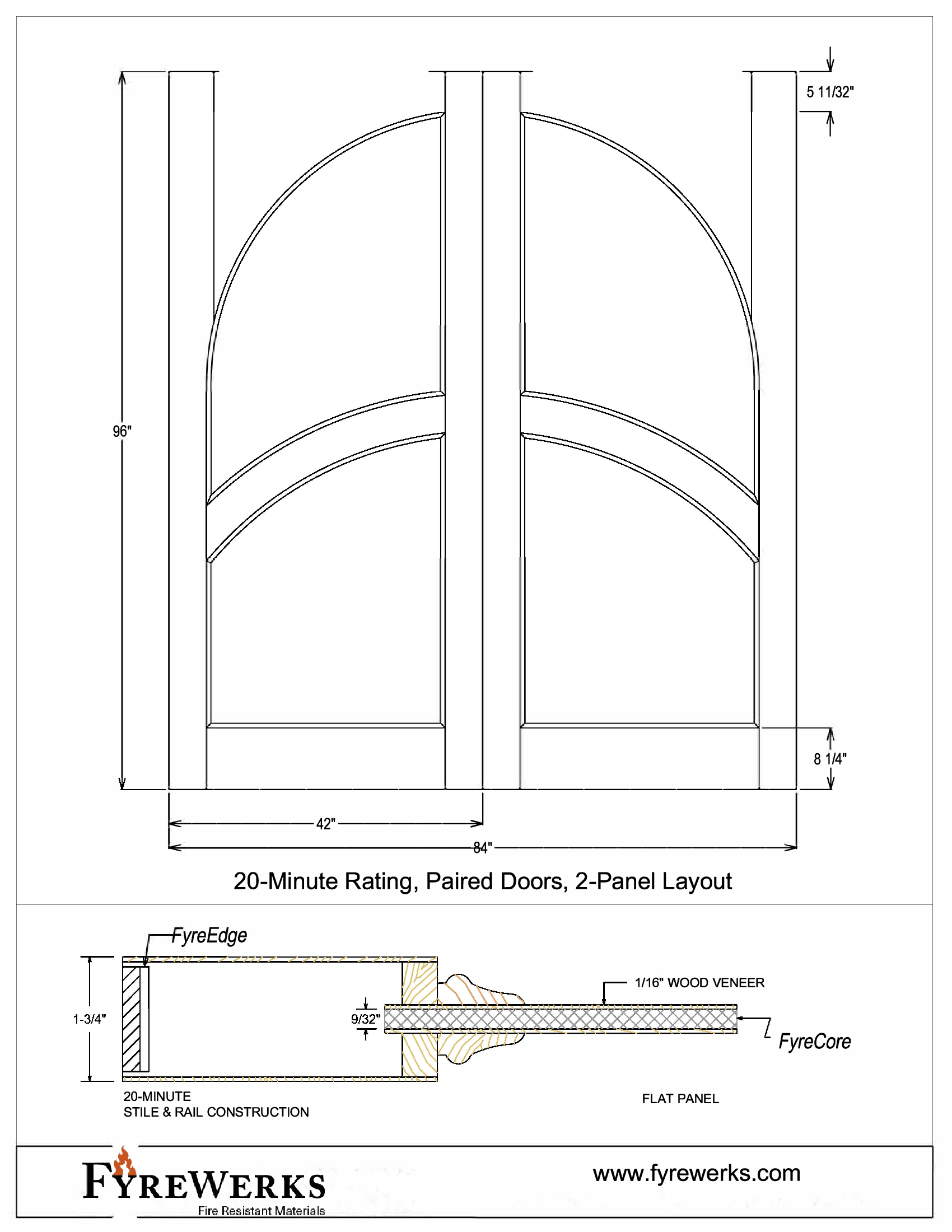

- FW-20 Sample Drawings

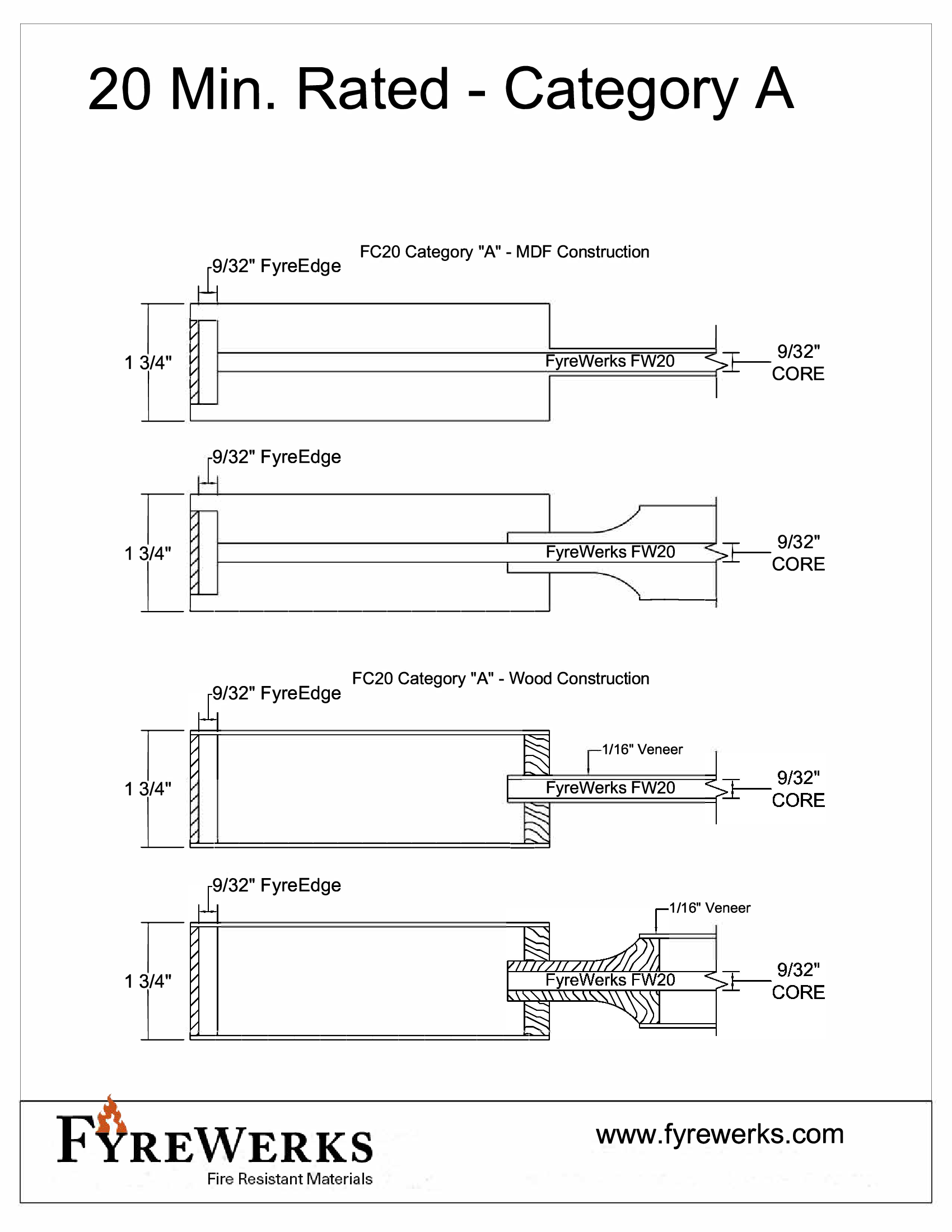

- 20 Minute Category "A" Cross Section Drawings

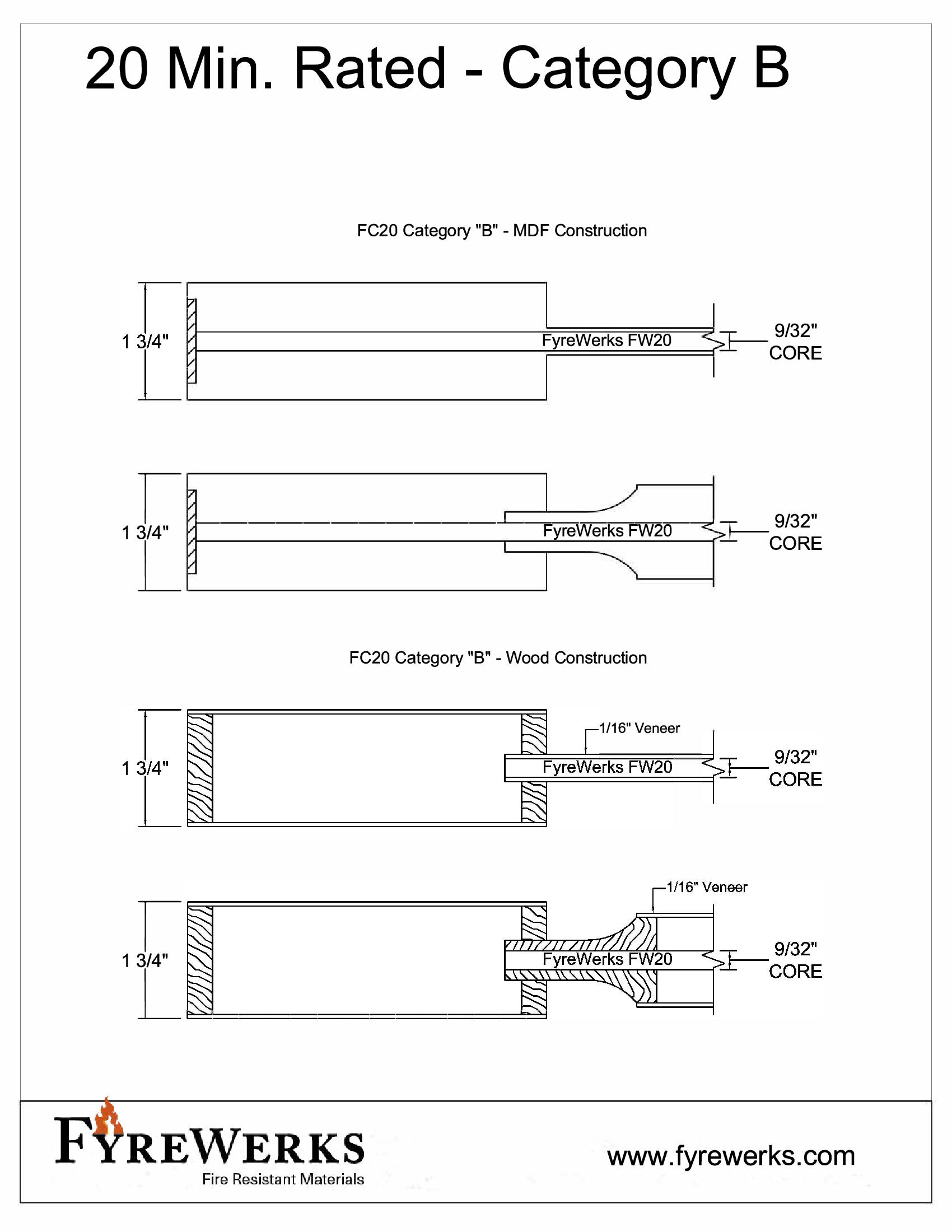

- 20 Minute Category "B" Cross Section Drawings

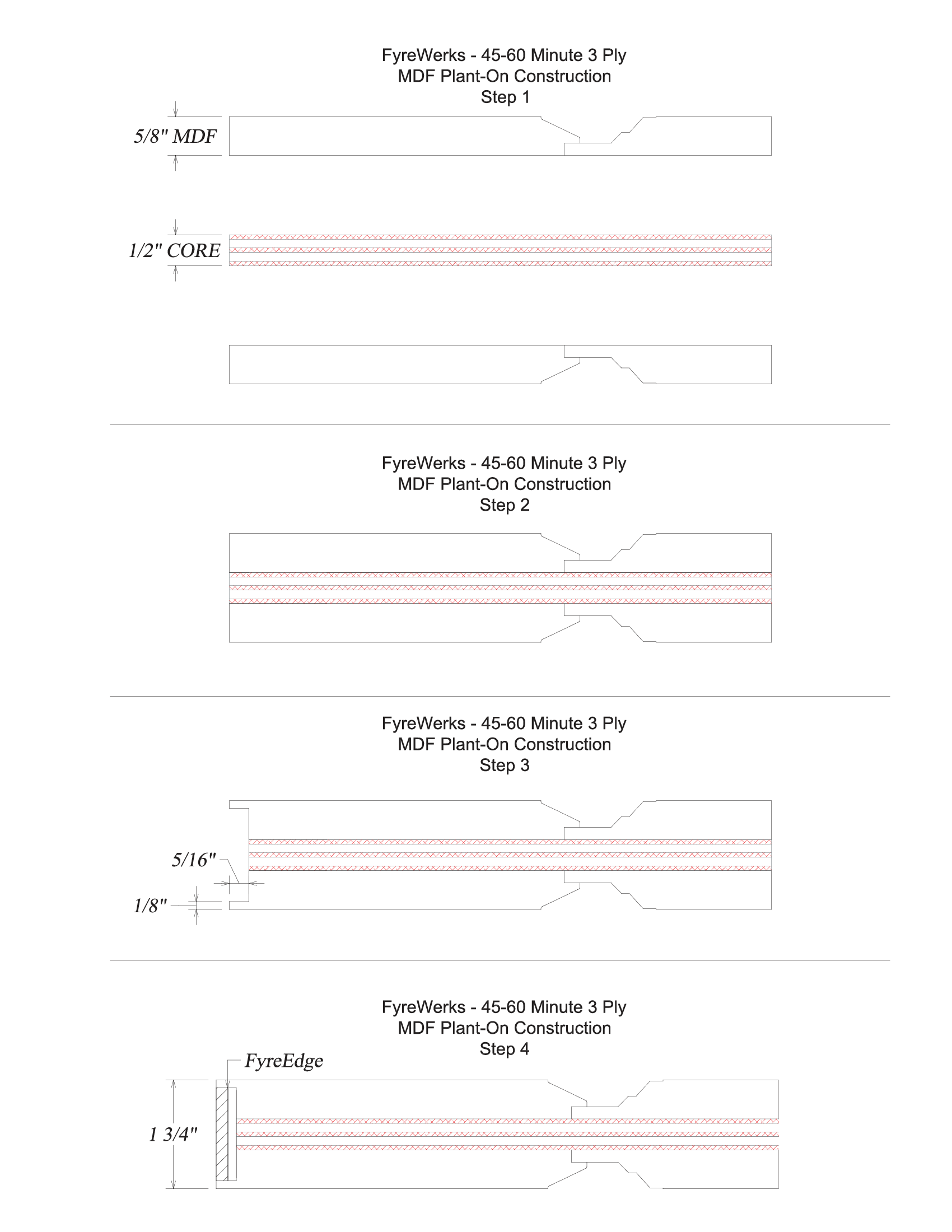

- 20 Minute 3 Ply MDF Plant-On Construction

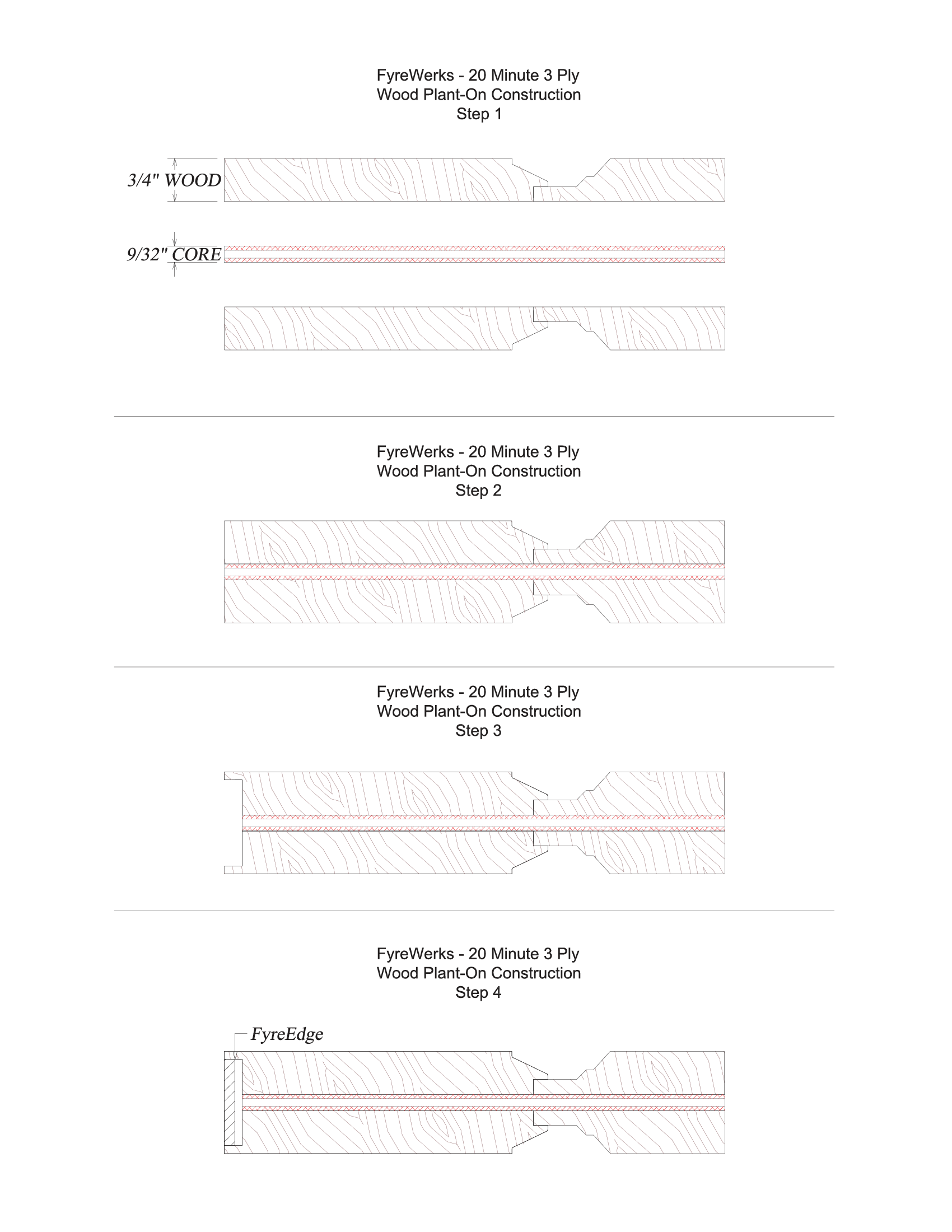

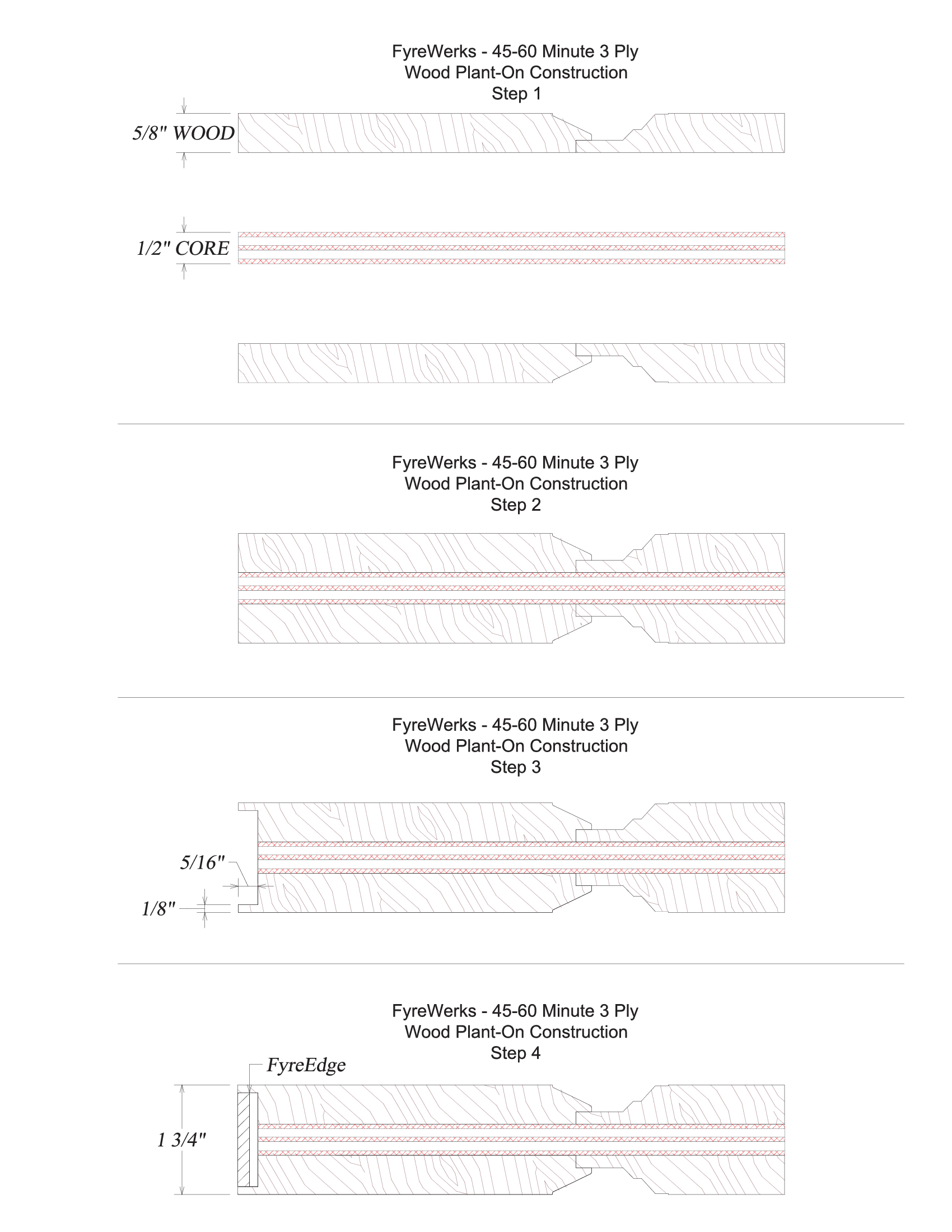

- 20 Minute 3 Ply Wood Plant-On Construction
- 20 Minute 3 Ply Routed MDF Construction

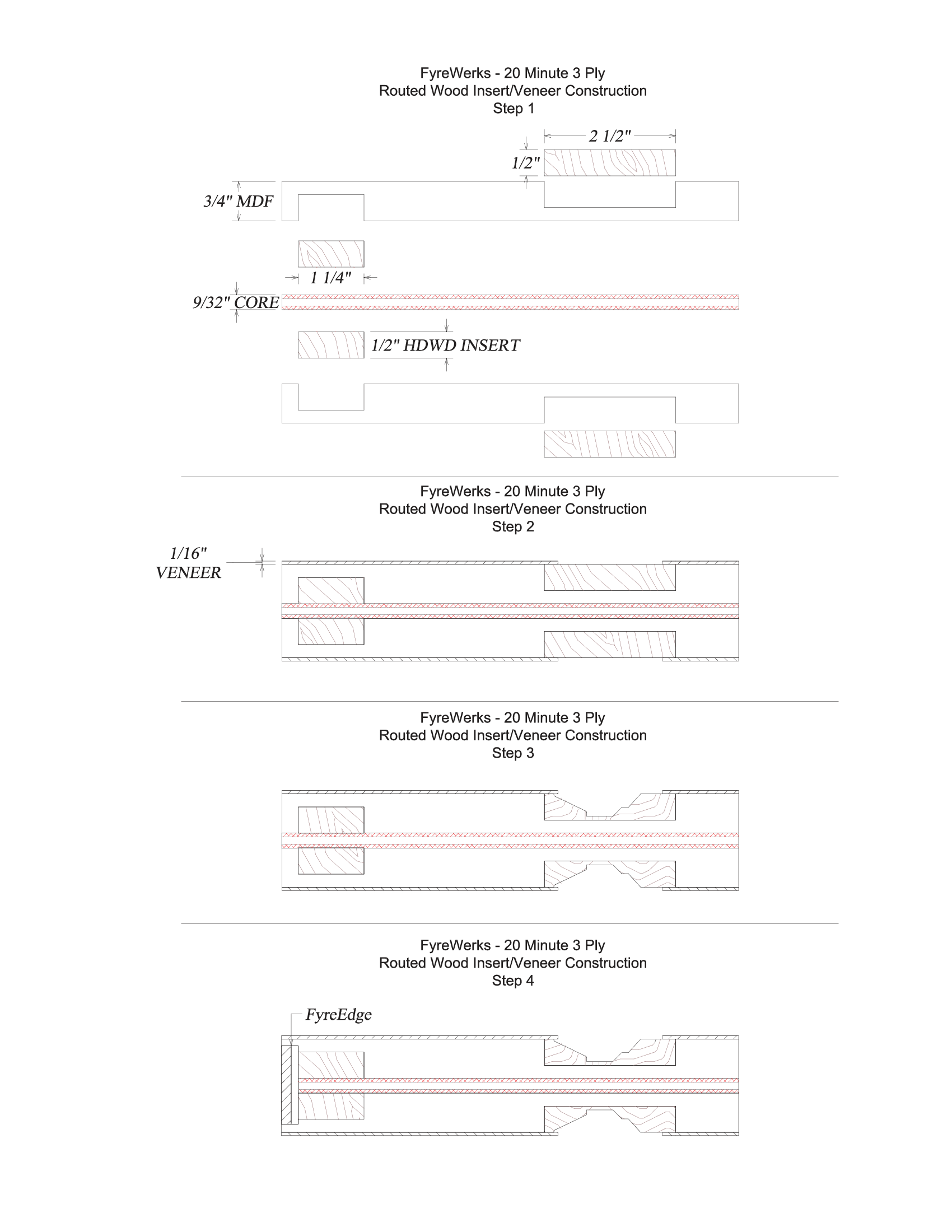

- 20 Minute 3 Ply Routed Wood Insert/Veneer Construction

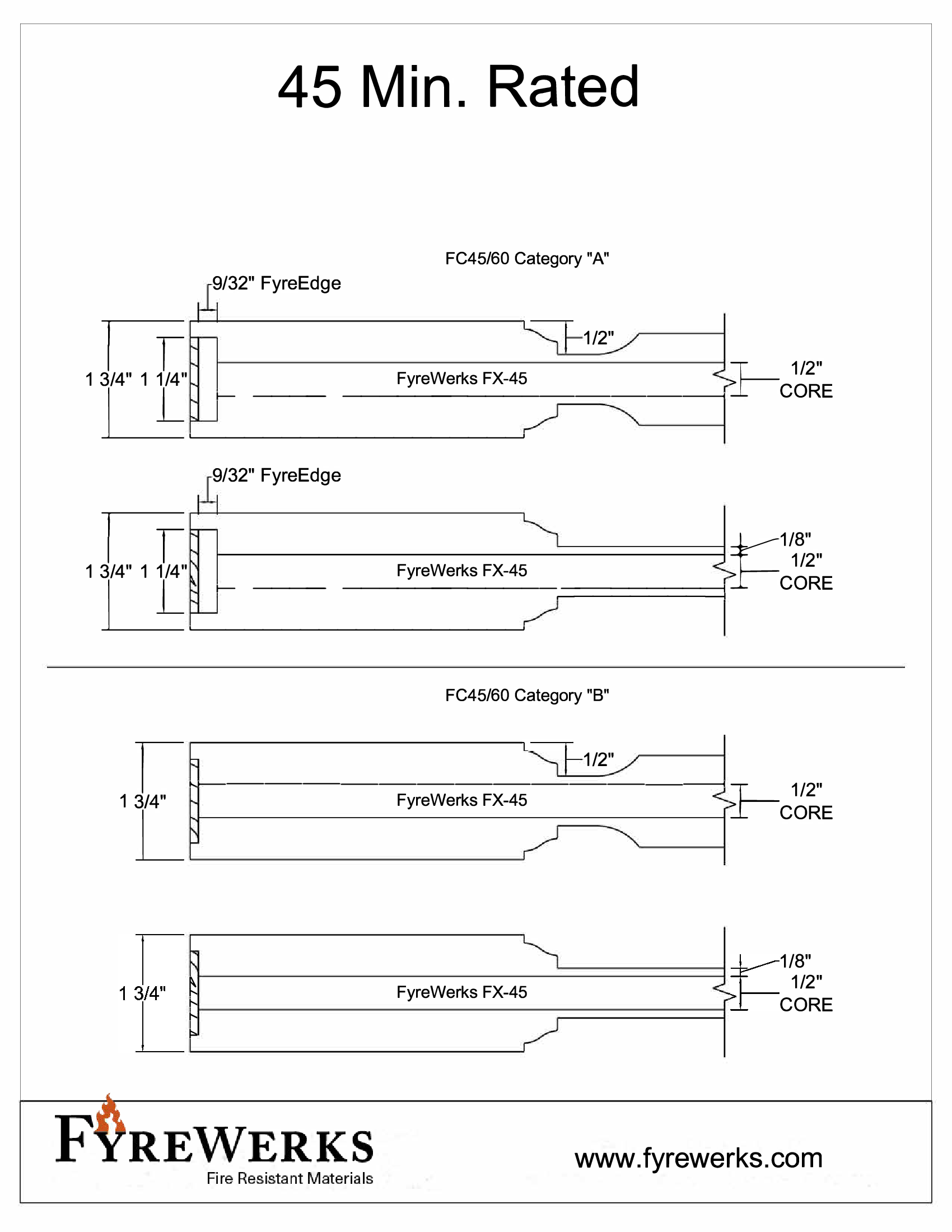

FX-45 / FC-45: 45-Minute Fire Door Cores

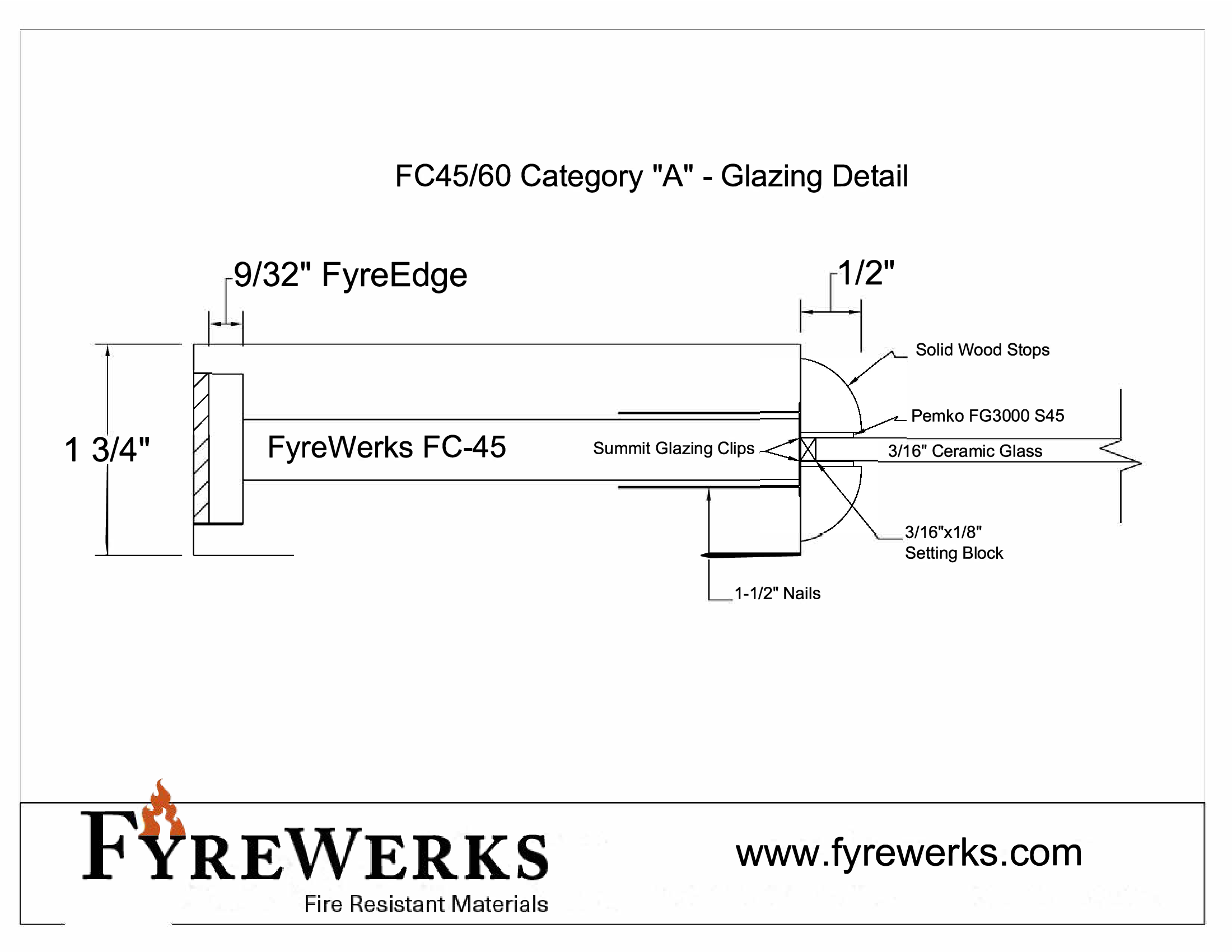

You can build, label and sell 45 minute Fire Doors, including a 45-minute with 1248" of glass, that match your non-rated doors for all projects.
Using FyreWerks cores you can build full radius 45 & 60 minute doors.
With FyreWerks FC-45-minute core you can use MDF or hardwood with a density of 18#’s per cubic foot or greater to make virtually any panel configuration. The drawings in this section highlight a small sample of what you can do using the FyreWerks core in your rated doors.
Size
0.50" x 44" x 85" and 0.50" x 44" x 97"
Composition
Proprietary core laminated between high density fiberboard skins to allow for easy glue up with standard approved wood glues.
Machining
Machines easily with standard cutting equipment. Wear eye protection.
Storage
Store in a cool, flat and dry location.
Handling
Wear gloves when handling. Edges can be sharp.
FX-60 / FC-60: 60-Minute Fire Door Core
You can build, label and sell 60 minute Fire Doors that match your non-rated doors for all projects.
Using FyreWerks cores you can build full radius 45 & 60 minute doors.
With FC-60-minute core you can use MDF or hardwood with a density of 18#'s per cubic foot or greater to make virtually any panel configuration.

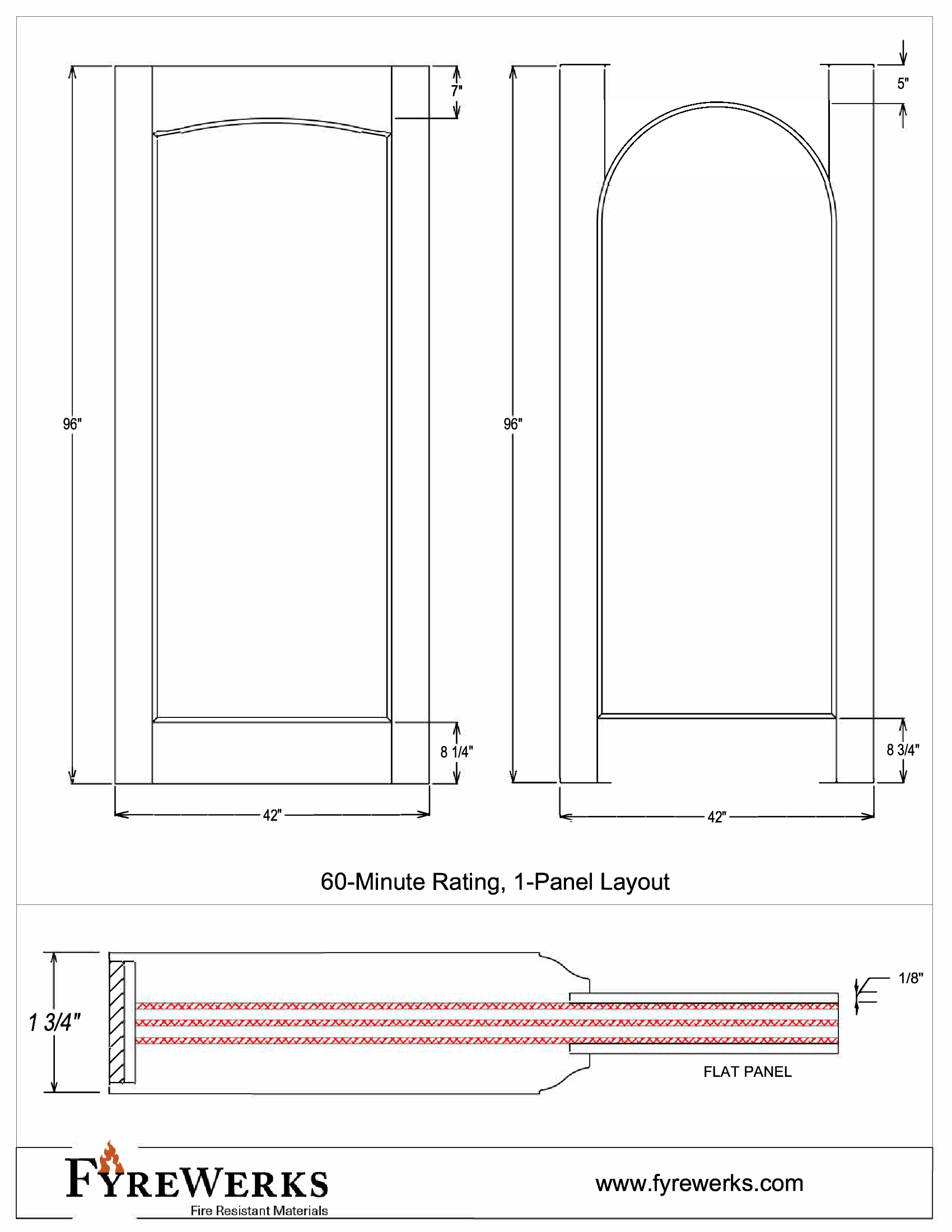

The drawings in this section highlight a small sample of what you can do using the FyreWerks core in your rated doors.
Size
0.50" x 44" x 85" and 0.50" x 44" x 97"
Composition
Proprietary core laminated between high density fiberboard skins to allow for easy glue up with standard approved wood glues.
Machining
Machines easily with standard cutting equipment. Wear eye protection.
Storage
Store in a cool, flat and dry location.
Handling
Wear gloves when handling. Edges can be sharp.

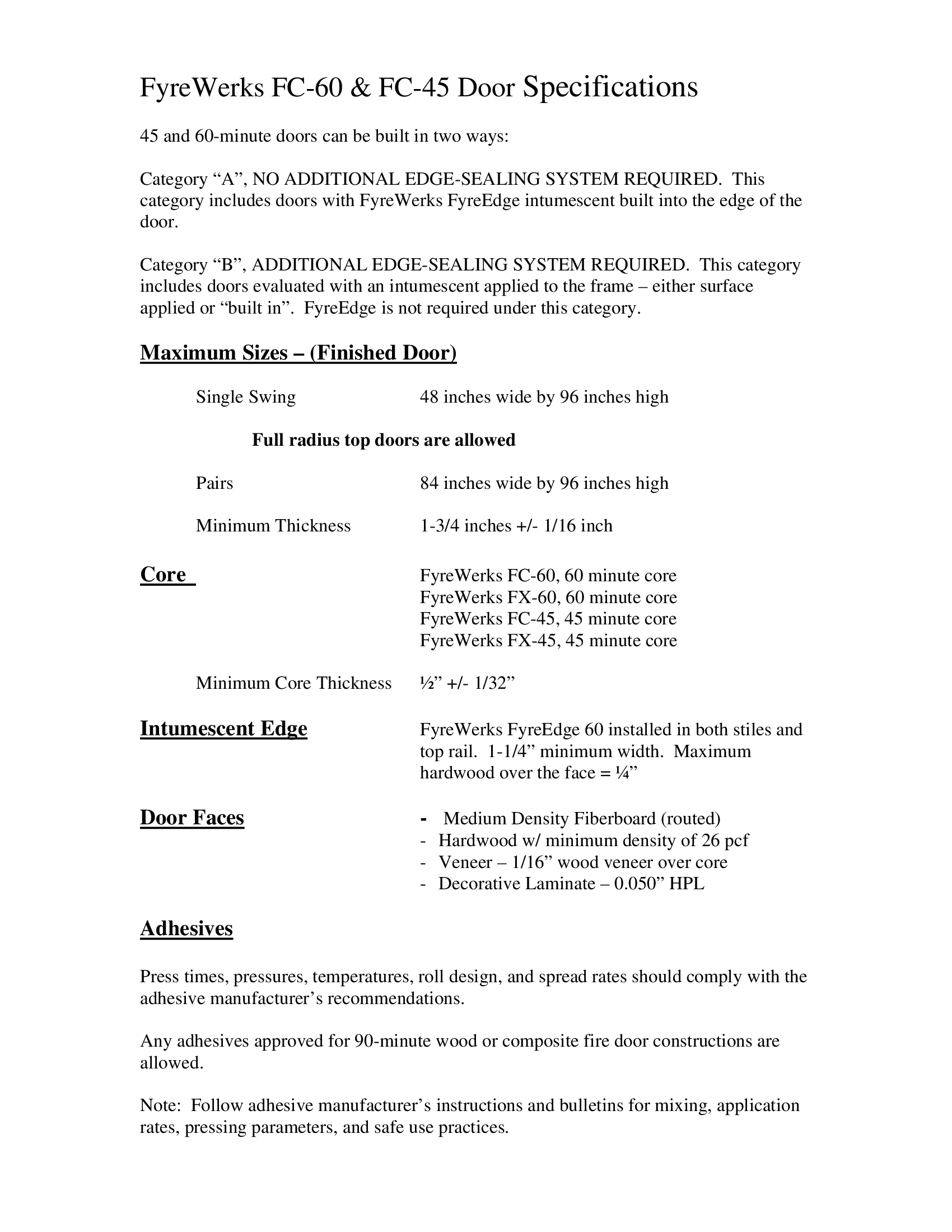

Specifications

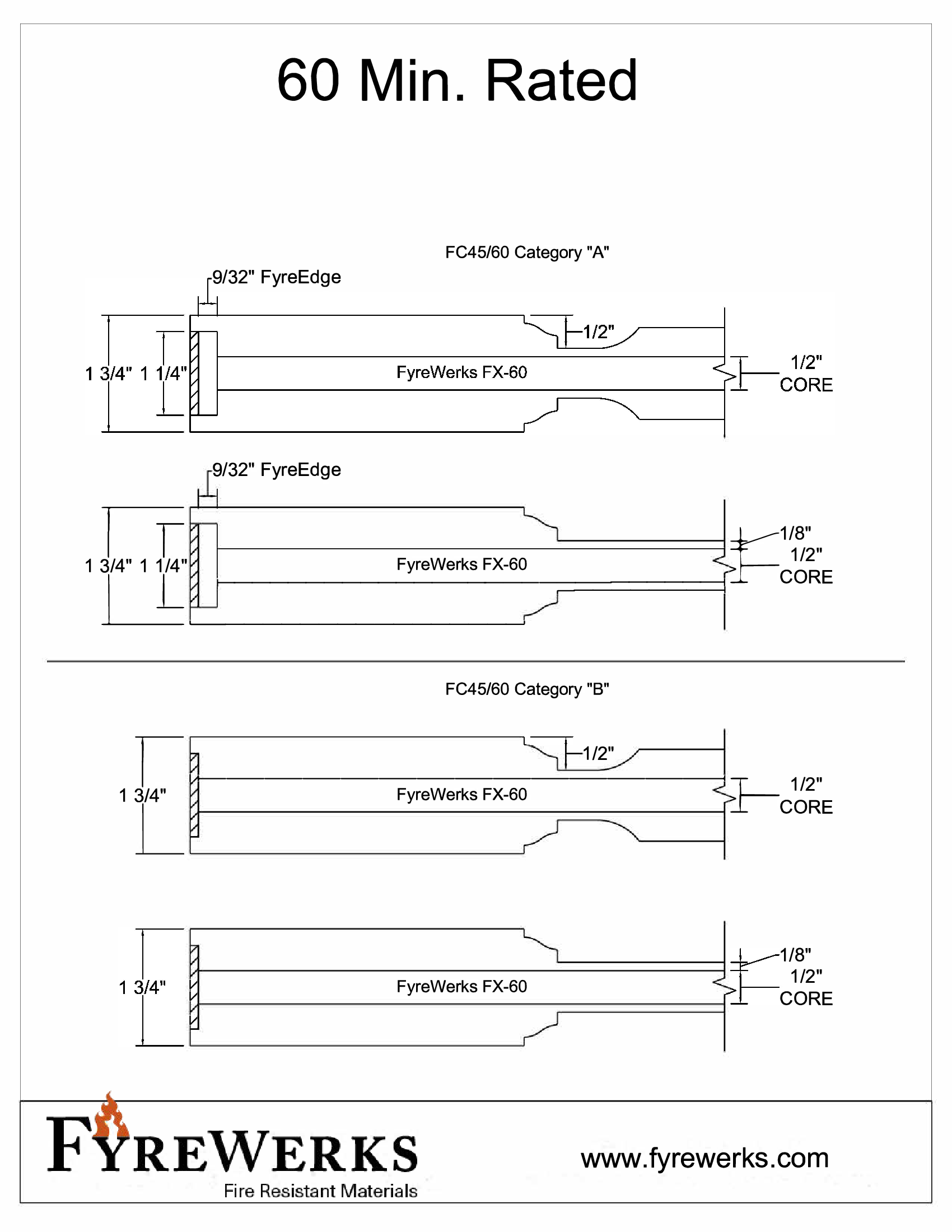

Drawings
FC-90: 90-Minute Fire Door Core
With the FyreWerks FC-90, 90-minute core you can use MDF or hardwood with a density of 26#'s per cubic foot or greater to make virtually any panel configuration.
Size
0.625” x 44” x 85” and 0.625” x 44” x 97
Composition
Proprietary core laminated between high-density fiberboard skins to allow for easy glue-up with standard approved wood glues.
Machining
Machines can easily be used with standard cutting equipment. Wear eye protection.
Storage
Store in a cool, flat, and dry location.
Handling
Wear gloves when handling. Edges can be sharp.
Specifications

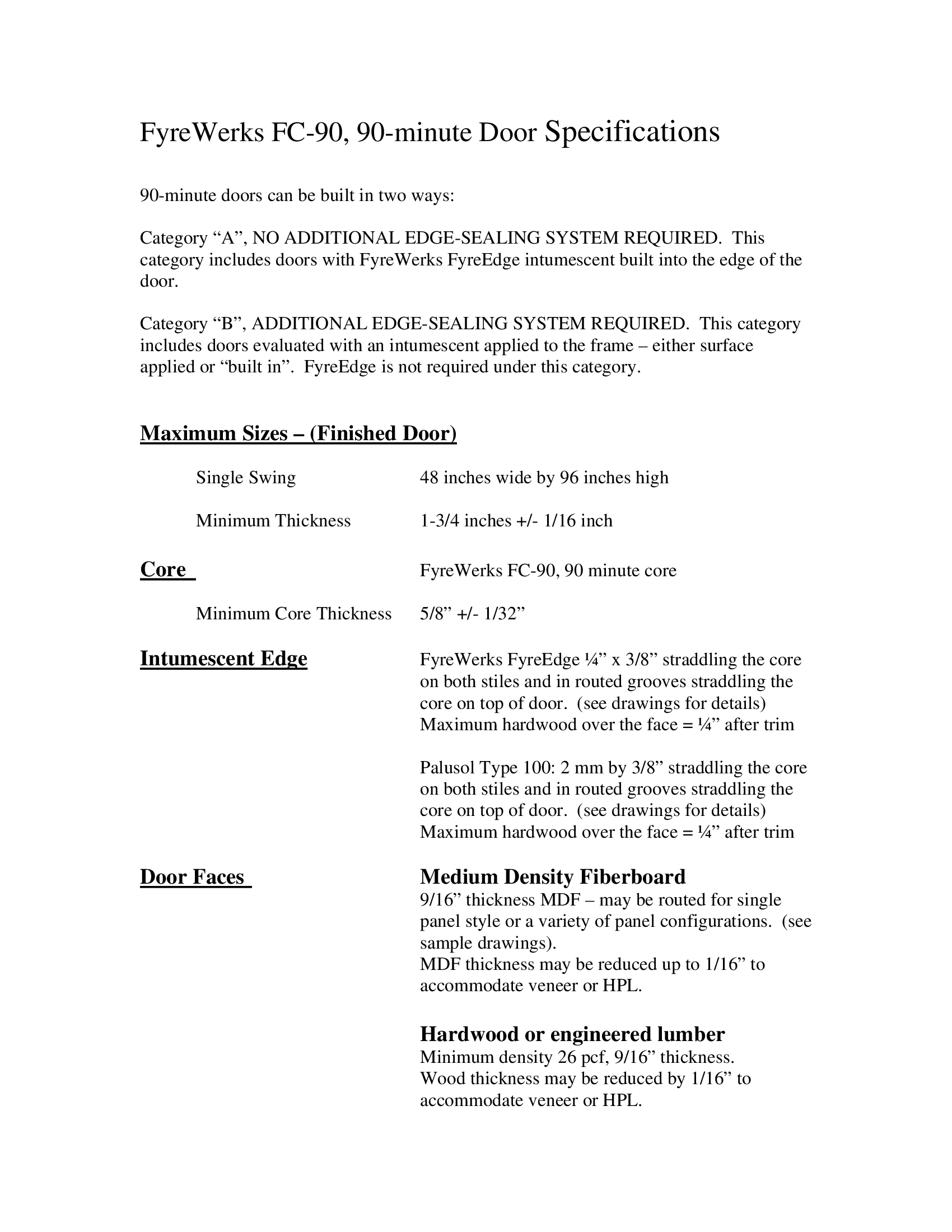

- FC-90 Manufacturing Specifications

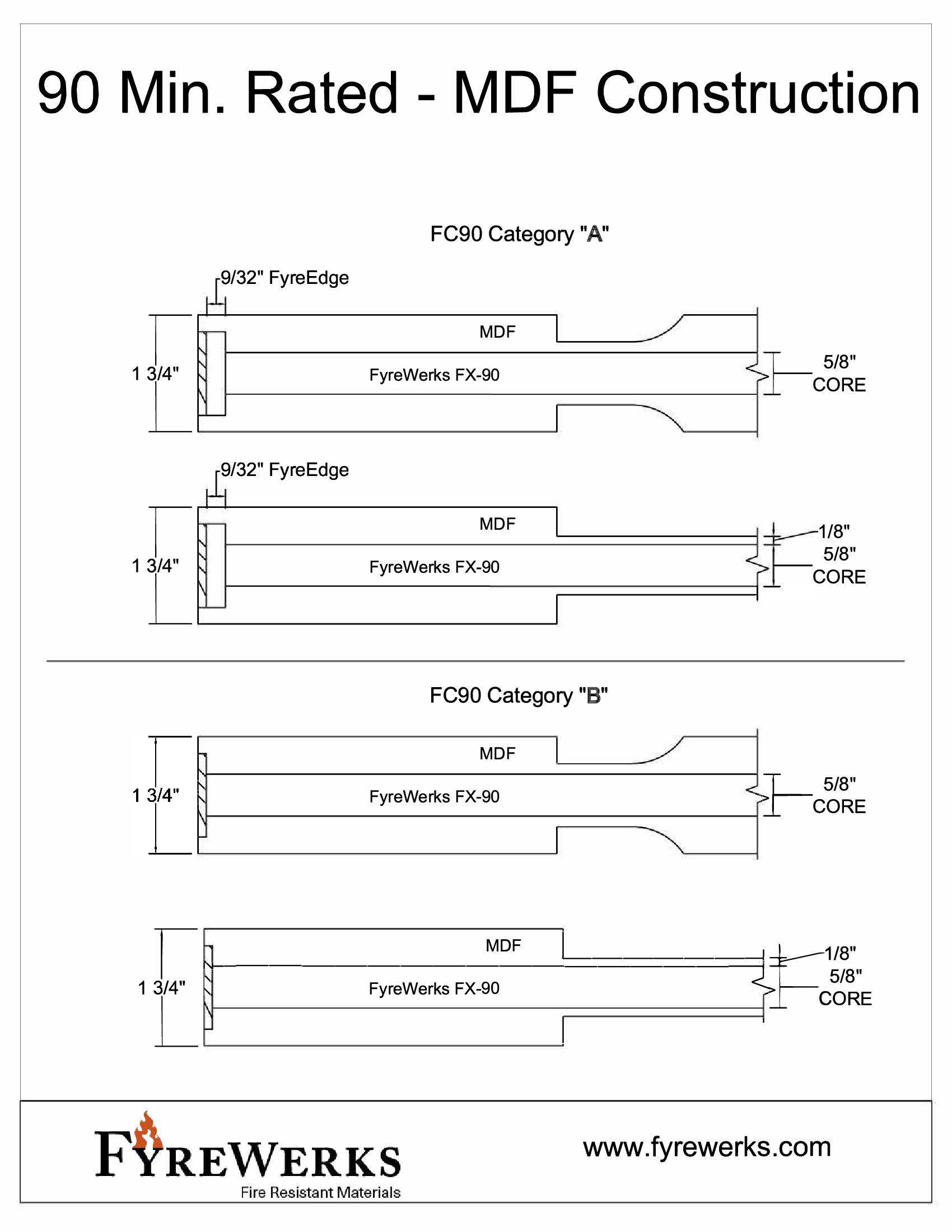

- 90 Minute MDF Category "A" & "B" Cross Section Drawings
- 90 Minute Wood Category "A" Cross Section Drawings

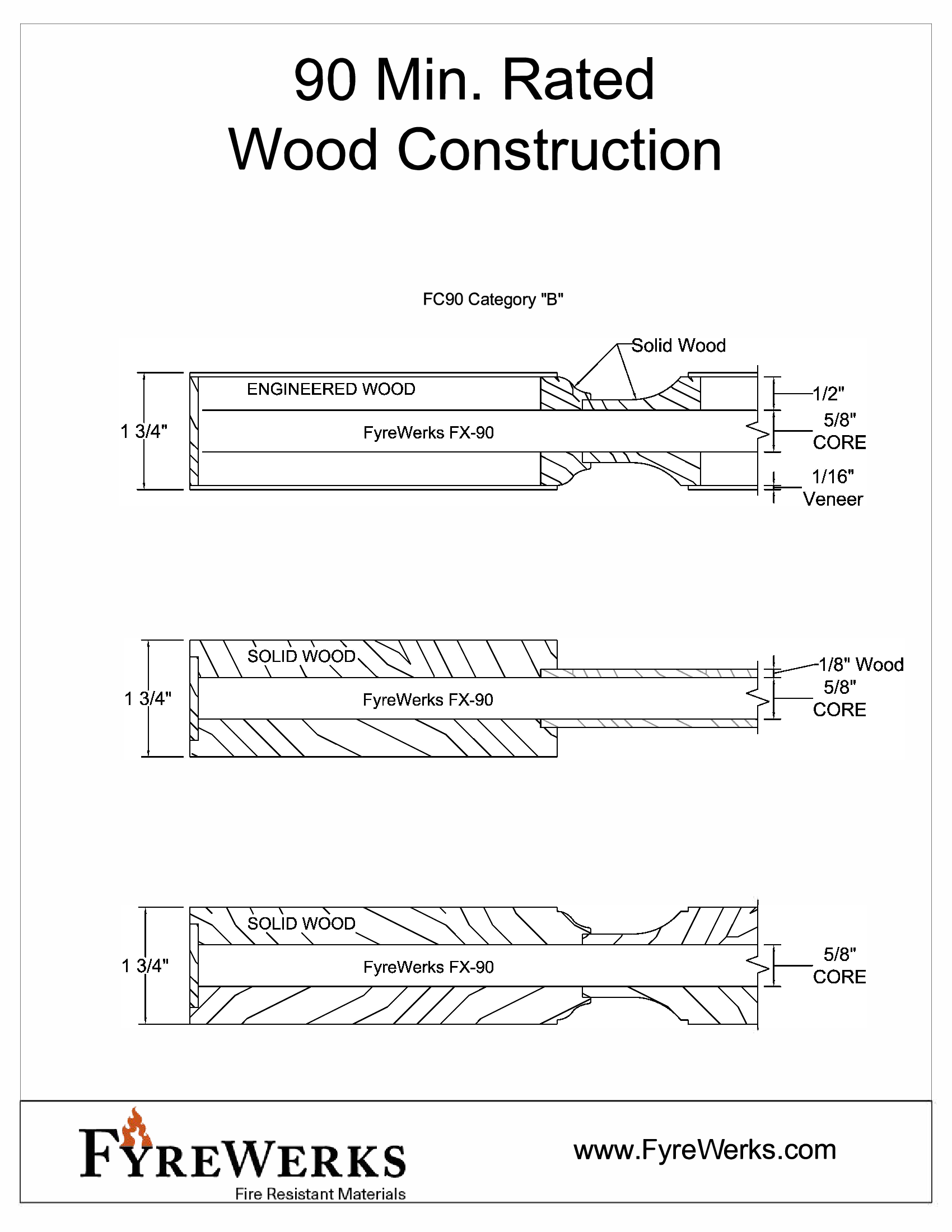

- 90 Minute Wood Category "B" Cross Section Drawings

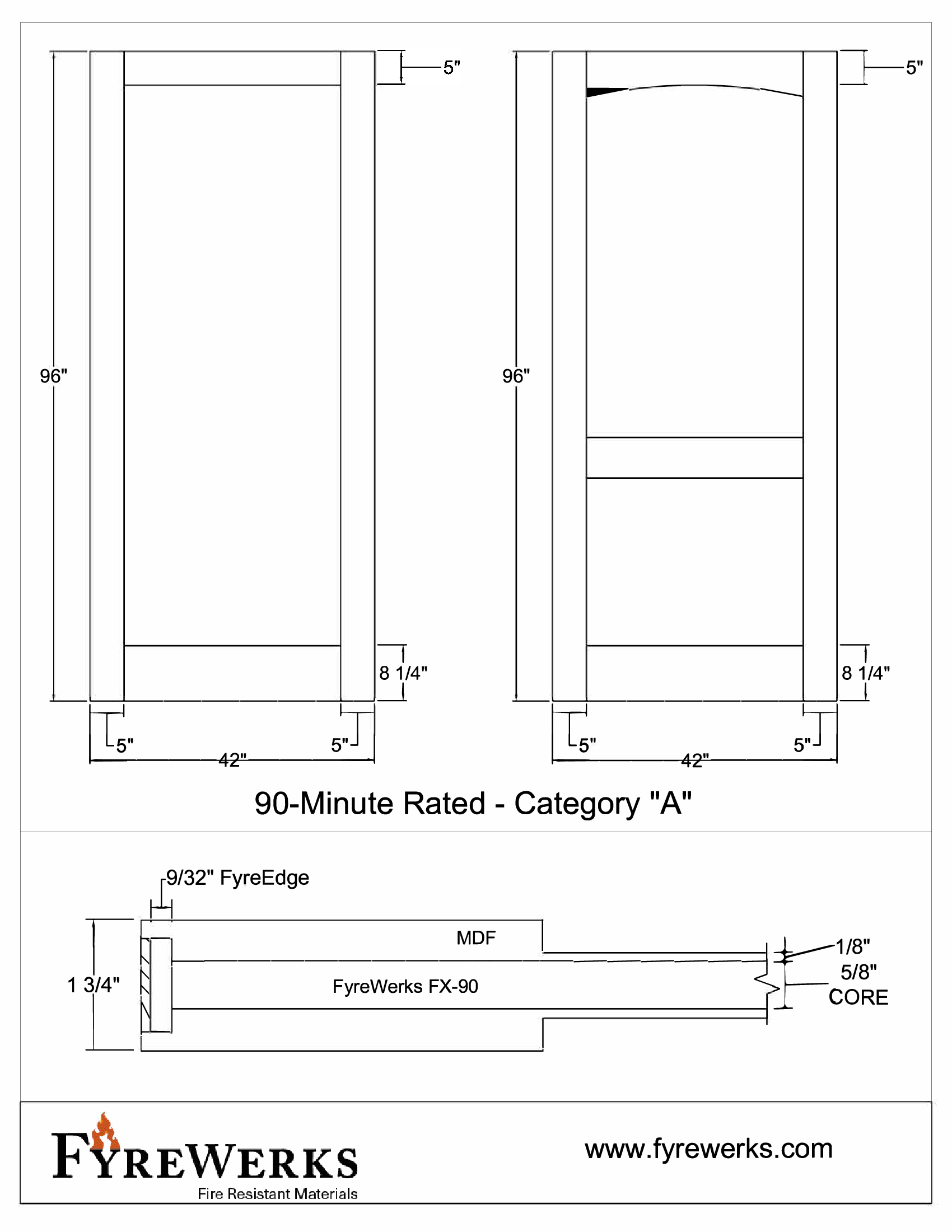

- 90 Minute MDF Flat Panel Elevation Drawing
- 90 Minute Wood Flat Panel Elevation Drawing

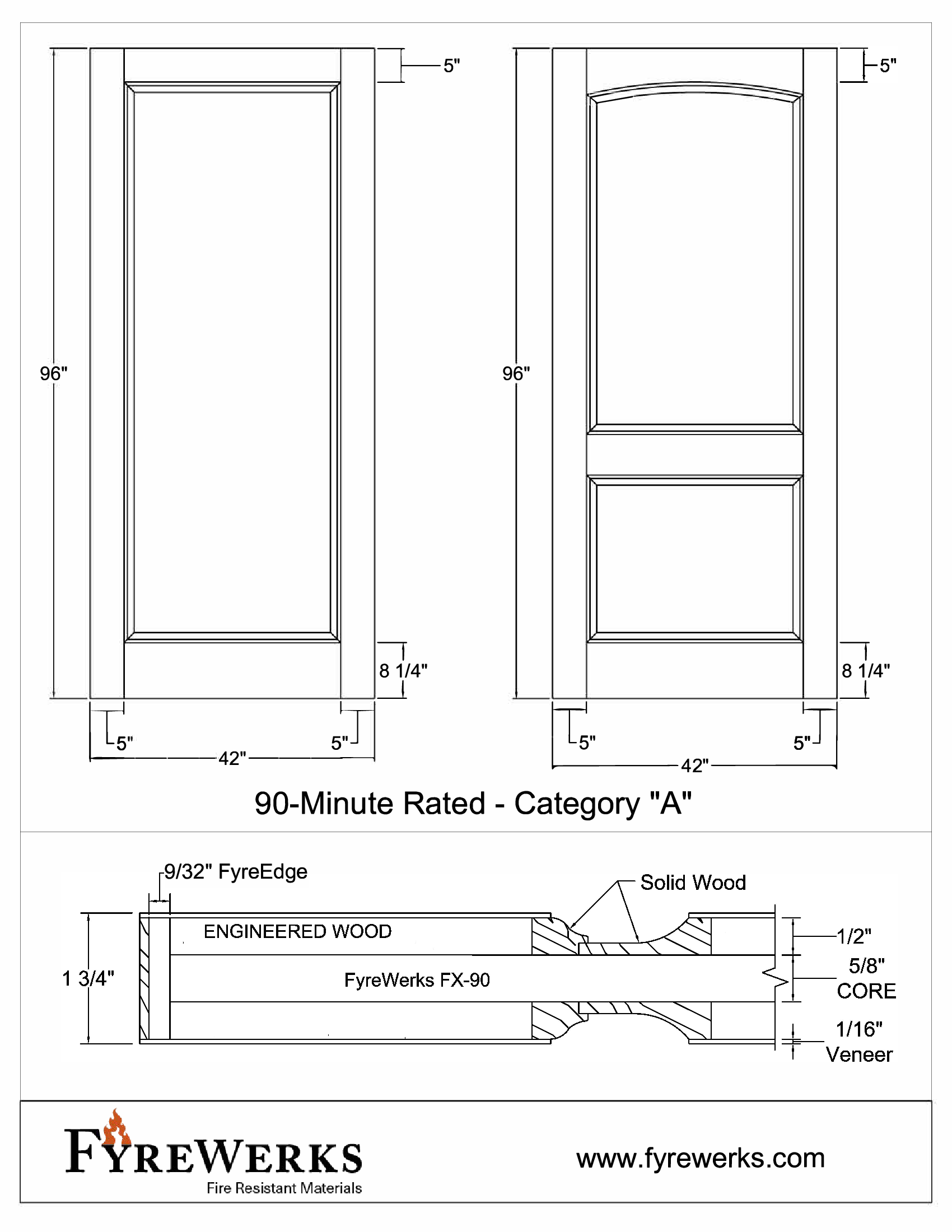

- 90 Minute Engineered Wood Raised Panel Elevation Drawing

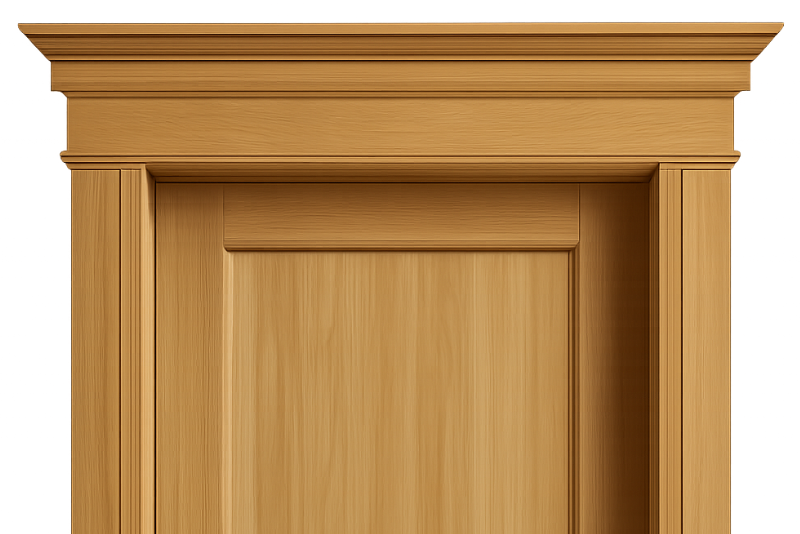

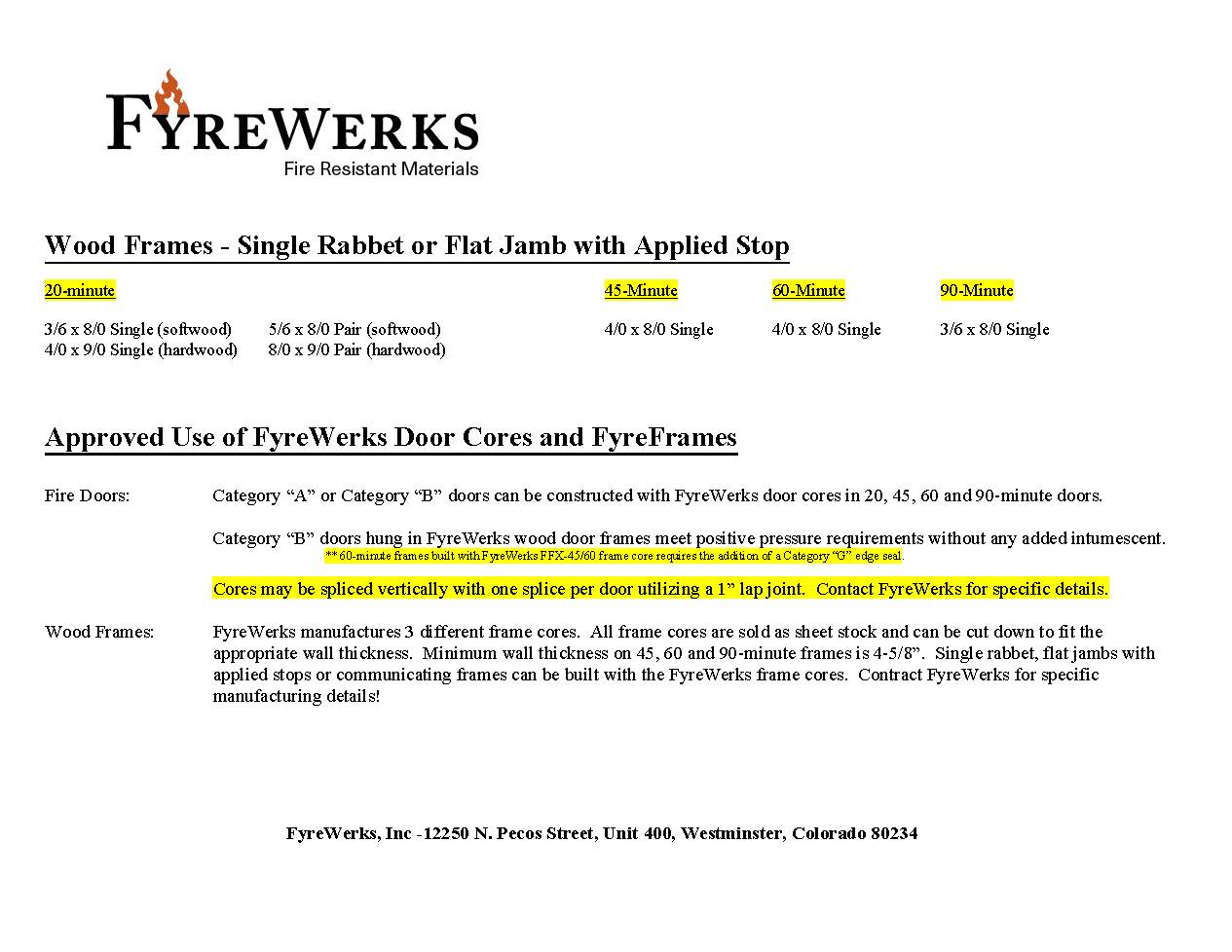

FyreFrame 20, 45, 60 & 90 Wood Door Frame Core
Every fire door needs a frame, make it a FyreFrame!

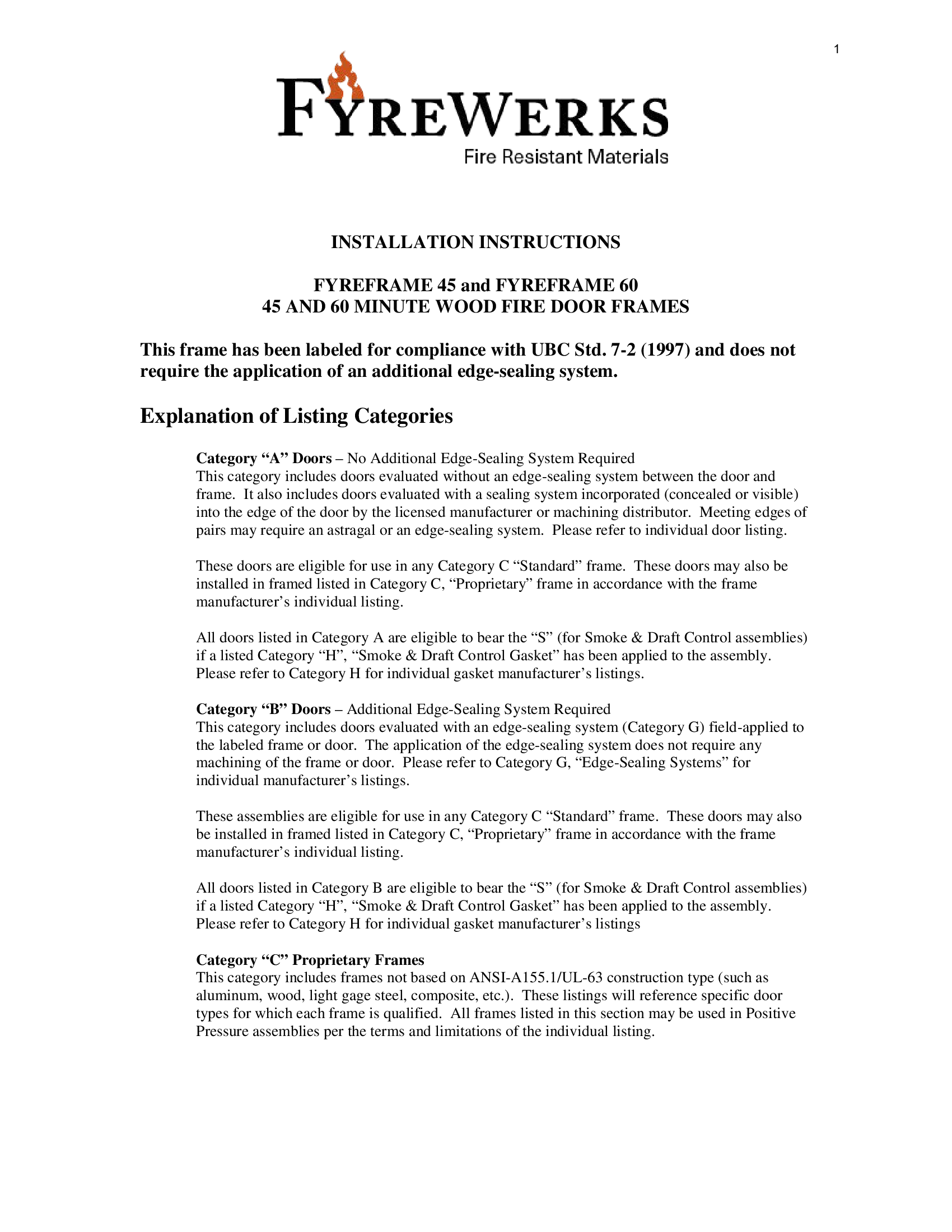

FyreWerks now offers 20, 45, 60 and 90 minute wood door frames. We provide you with a certification that allows construction of solid wood 20-minute door frames and and 45, 60 and 90-minute wood door frames using our FyreWerks frame cores.
- 4-5/8" minimum wall thickness
- 3/4" minimum jamb thickness

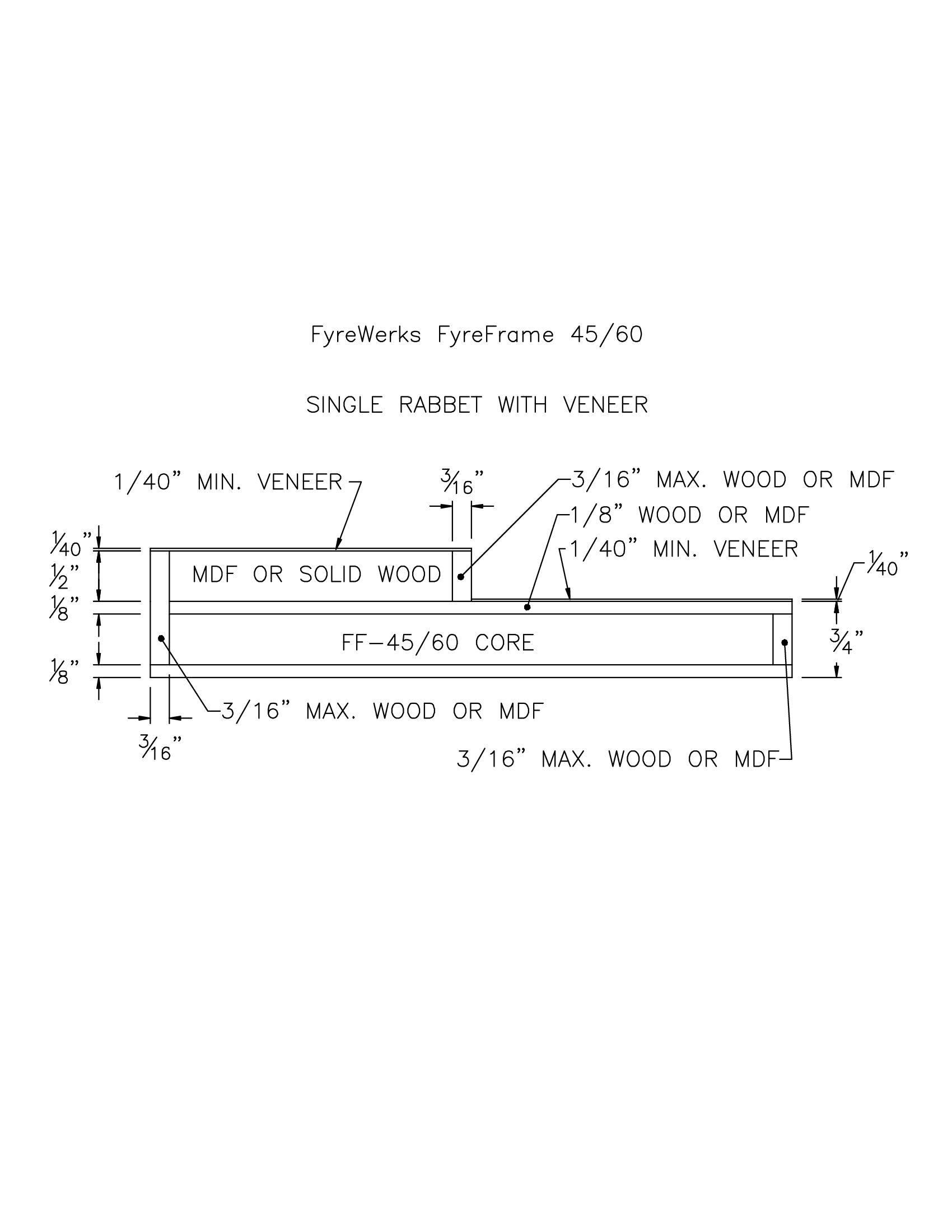

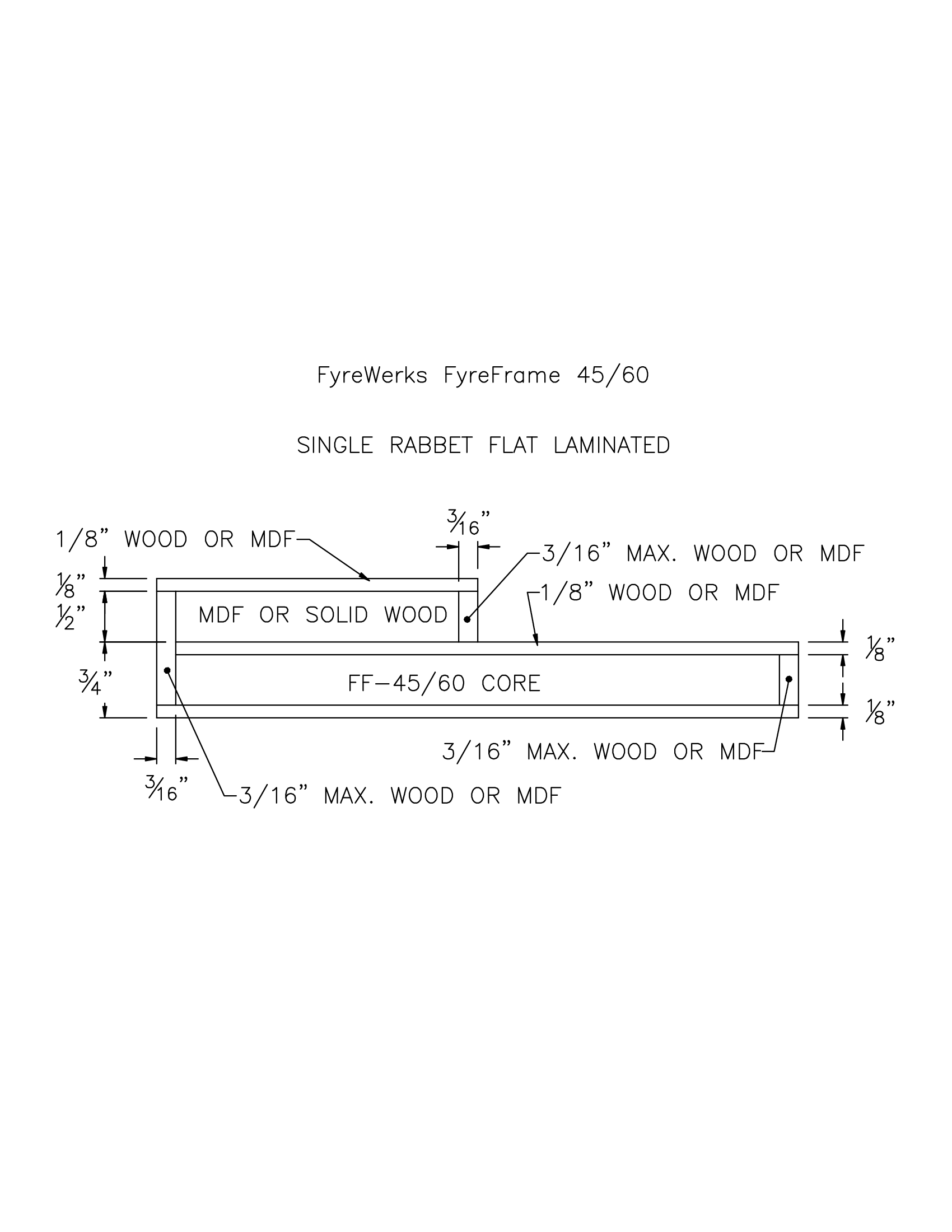

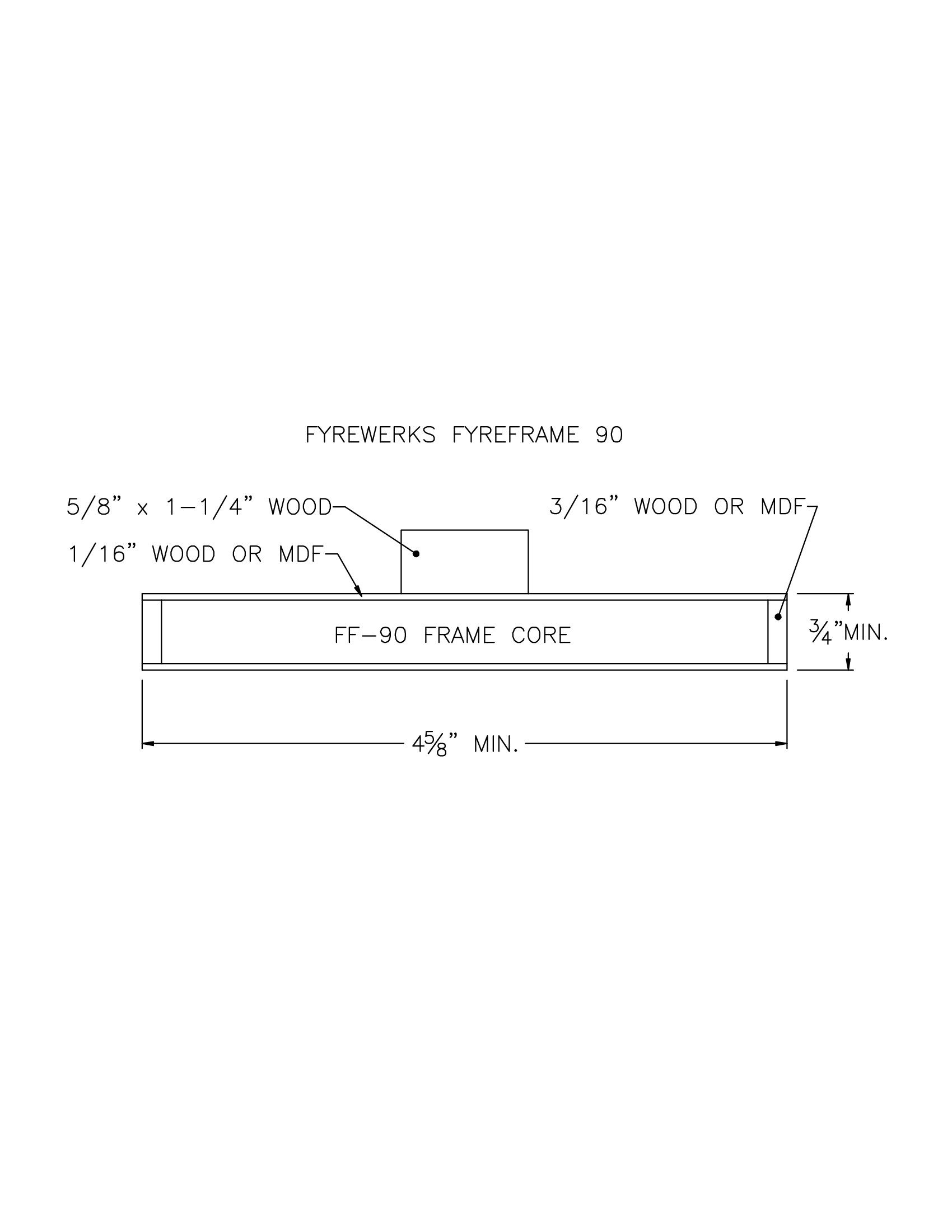

- Single rabbet, flat jamb with applied stop or communicating frames
- No metal clips needed for installation
Size

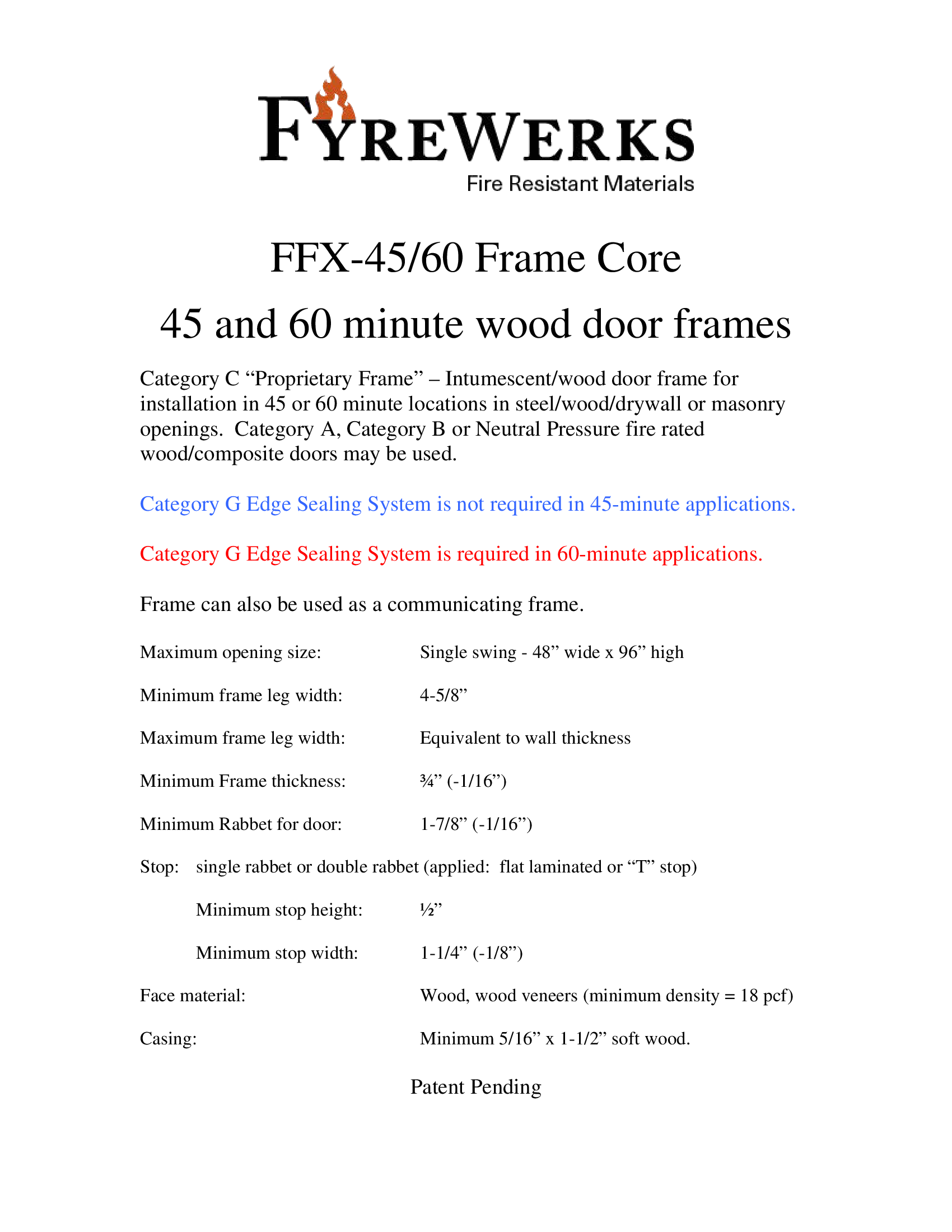

FF-45/60: 45& 60 minute frame core = 0.50” x 44” x 98”
FFX-45/60: 45 & 60 minute frame core = 0.66” x 44” x 98”
Composition
Proprietary core laminated between high density fiberboard skins to allow for easy glue up with standard approved wood glues.
Machining
Machines easily with standard cutting equipment. Wear eye protection.
Storage
Store in a cool, flat and dry location.
Handling
Wear gloves when handling. Edges can be sharp.

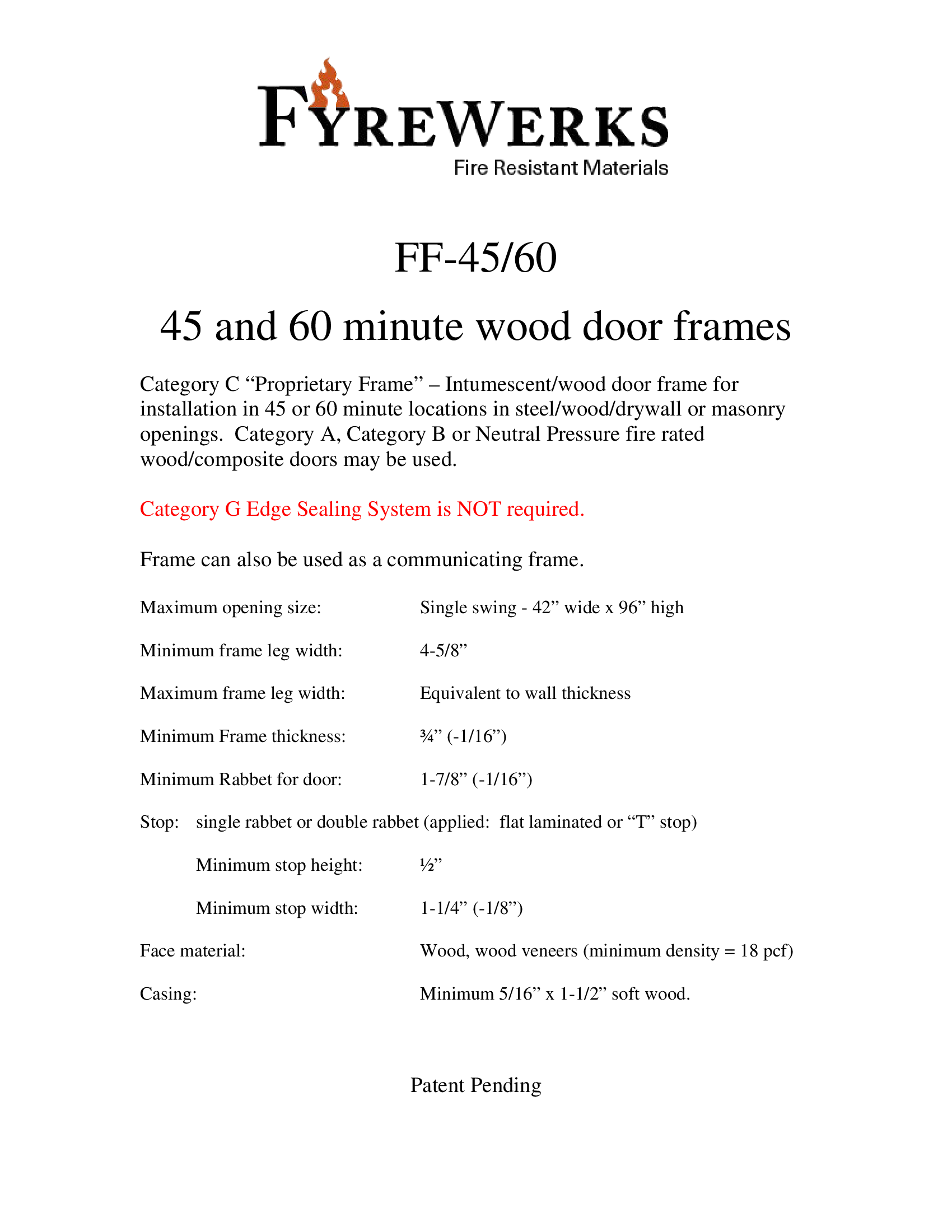

Specifications
Drawings
FyreEdge Intumescent edge material
FyreEdge is the FyreWerks intumescent edge that must be included on both stiles and the top rail in all category "A" fire rated doors.

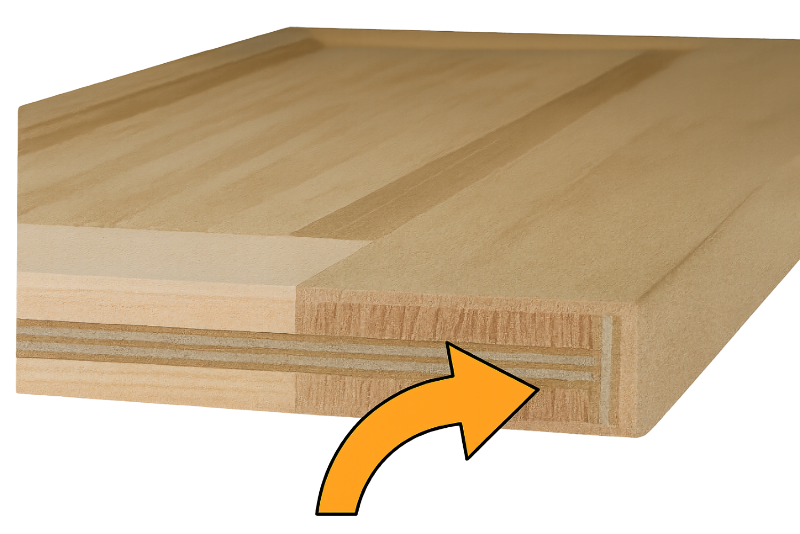

The arrow shows how the FyreEdge is included in the FX-45, 45-minute door.
0.28" thick with hard board on both surfaces to facilitate glue-up during door construction.
0.28" x 14.5" x 97"
PVA (wood glue) compatible skin
Machines with standard cutting tools
Size
0.28” x 14.5” x 97”
Composition
Proprietary core laminated between high density fiberboard skins to allow for easy glue up with standard approved wood glues.
Machining
Machines easily with standard cutting equipment. Wear eye protection.
Storage
Store in a cool, flat and dry location.
Handling
Wear gloves when handling. Edges can be sharp
